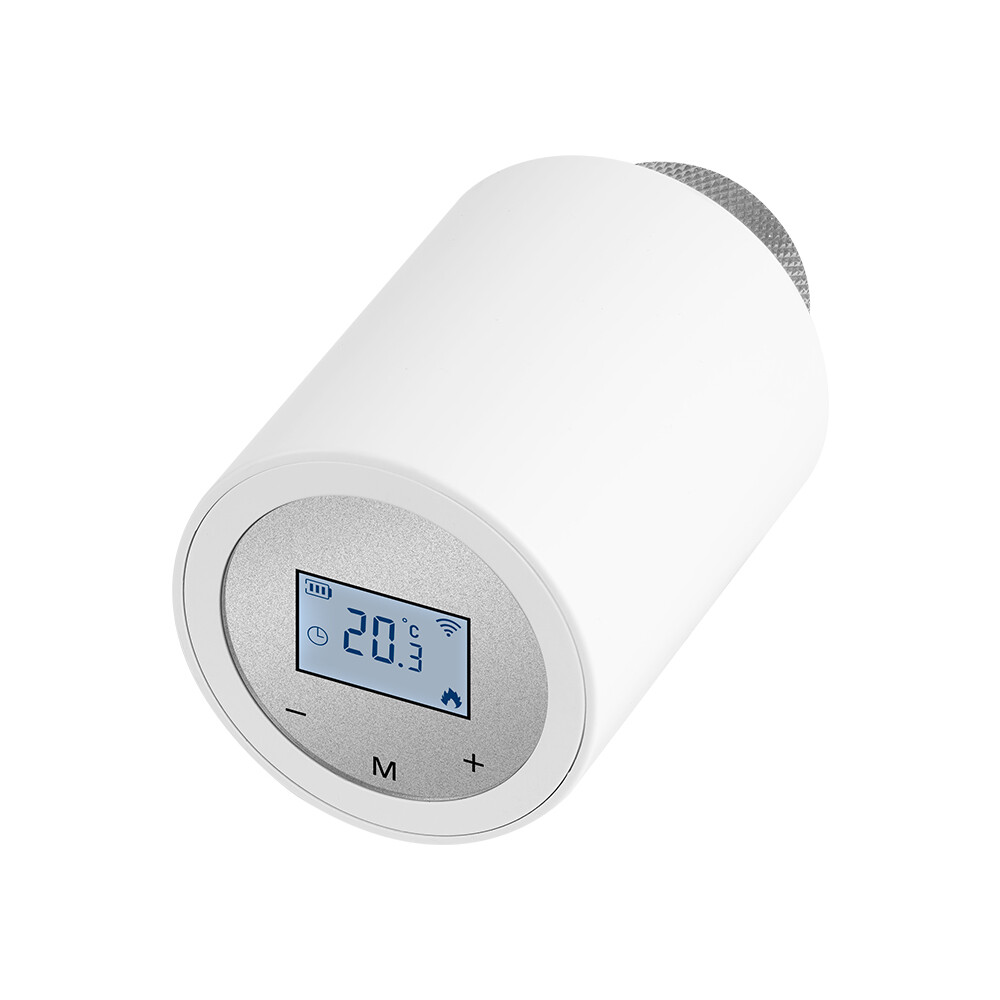

TRV
TRV-803ZB

About this item

• Room Thermostatic Radiator Valve

• Supply: Battery Powered

• Current Consumption: 100 mA Max

• Connection: M30*1.5 mm

• Linear Travel: 6 mm

• Color: White

• Protective Class: IP20

• Sensor: NTC


Video



Technical Data


Model Name
TRV-803ZB
Power3*1.5V AA Batteries
Current Consumption100 mA Max
Operating Temp.0~50℃ indoor using only
Storge Temp.-20~70℃
Protective ClassIP20
Surface Temperature90℃ Max
ConnectionM30*1.5mm
SensorNTC
CertificatesCE / RED/ ROHS
Warranty24 months



Model Spec


TRV-803ZBTRV-803WF
3*1.5V AA Batteries3*1.5V AA Batteries
100 mA Max100 mA Max
Zigbee Remote ControlWifi Remote Control

√ APP Control

 √ APP Control
M30*1.5mmM30*1.5mm
WhiteWhite



Product Display

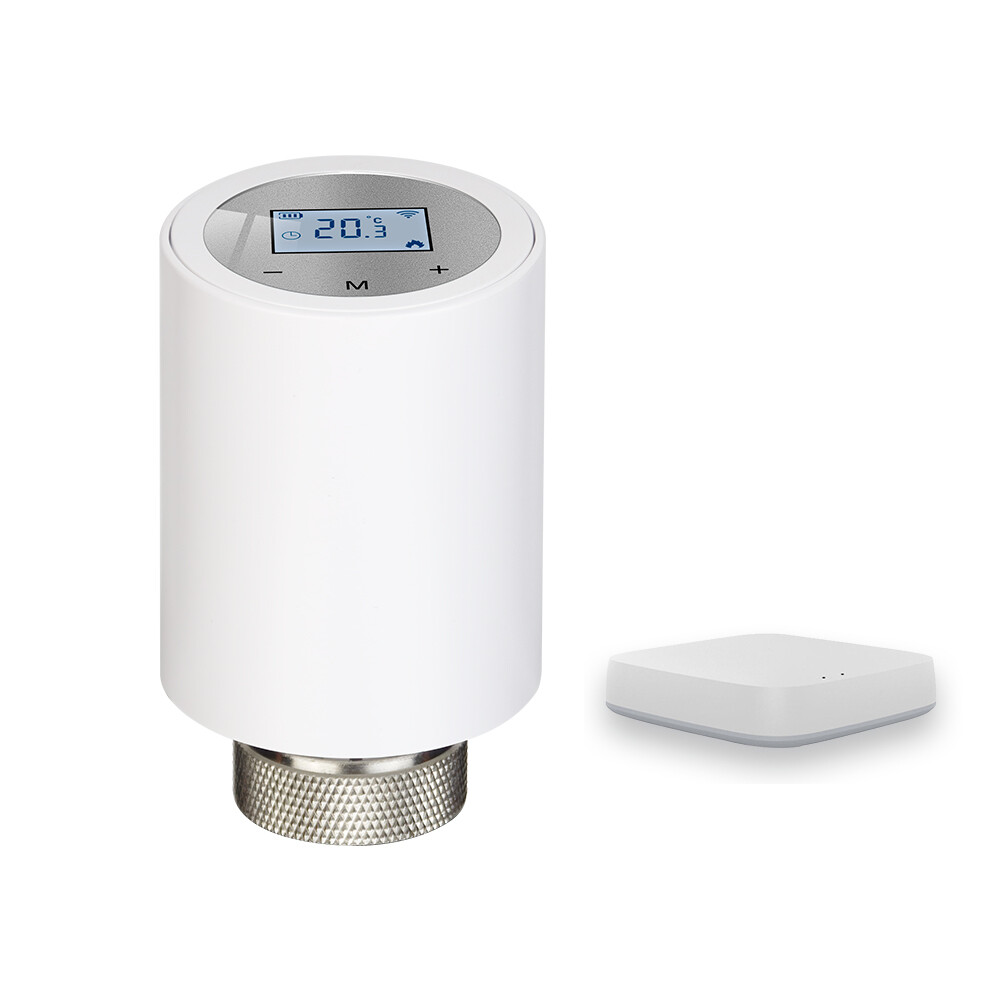

TRV-803ZB Zigbee thermostatic radiator valve is smart home devices that use Zigbee wireless communication technology. They are mainly used to control the water flow of heating radiators or floor heating systems, thereby achieving intelligent regulation of indoor temperature. They are usually used in conjunction with Zigbee gateways and can be remotely controlled and automatically managed through mobile apps, voice assistants or preset programs, aiming to provide a more comfortable and energy-saving heating experience.

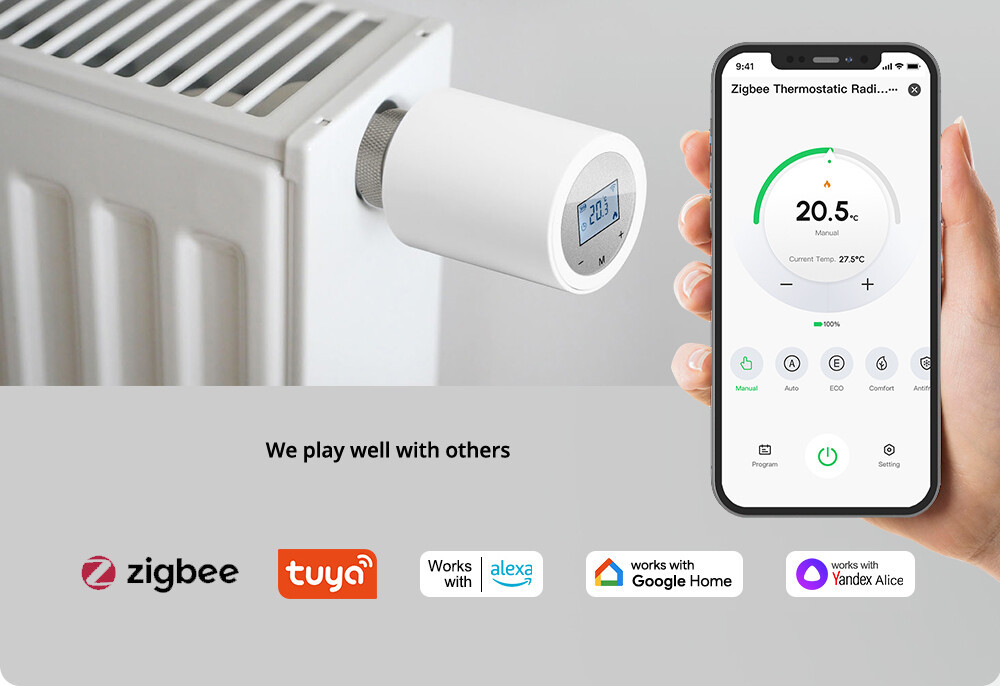

TRV-803ZB


Real Photos Display

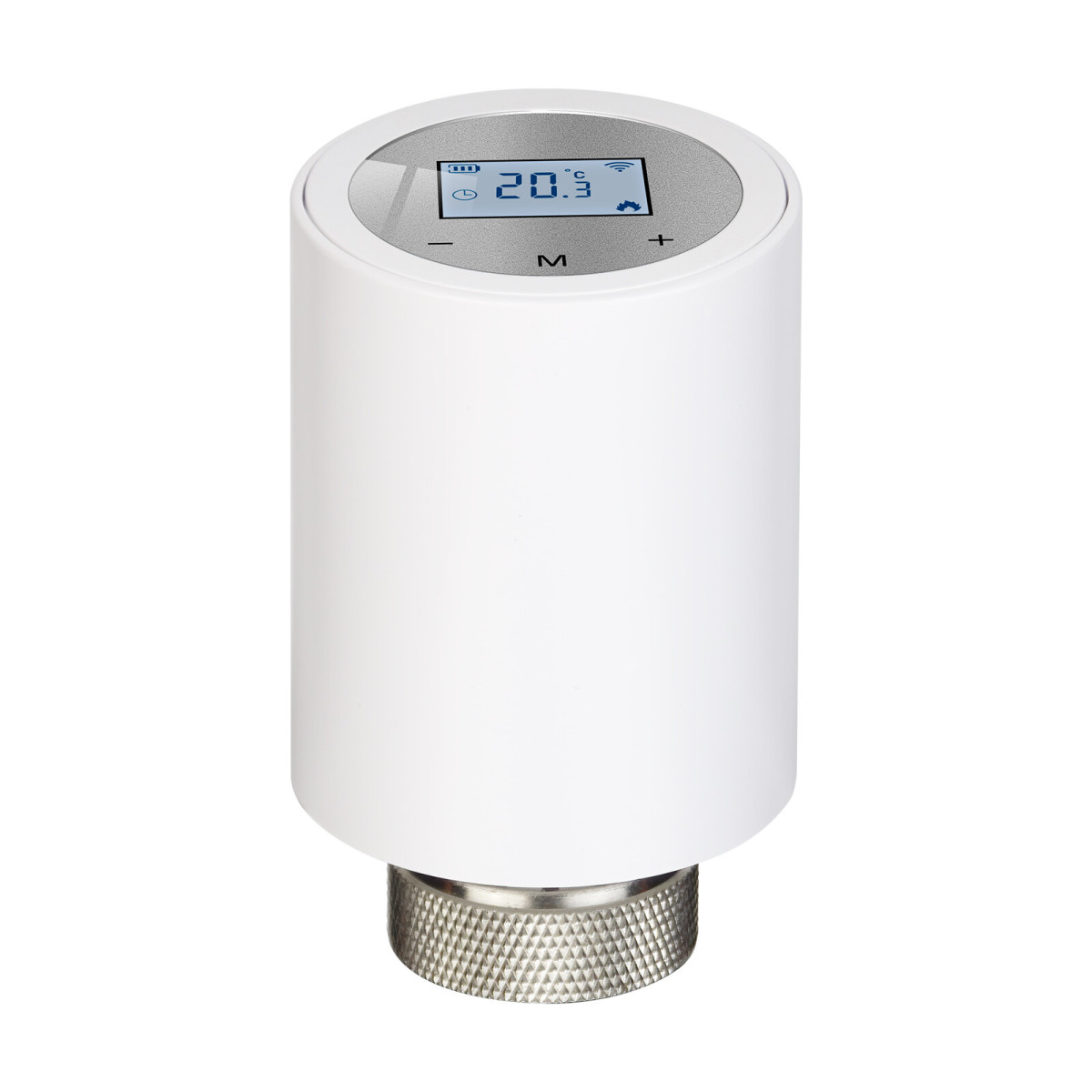

12-4


12-3

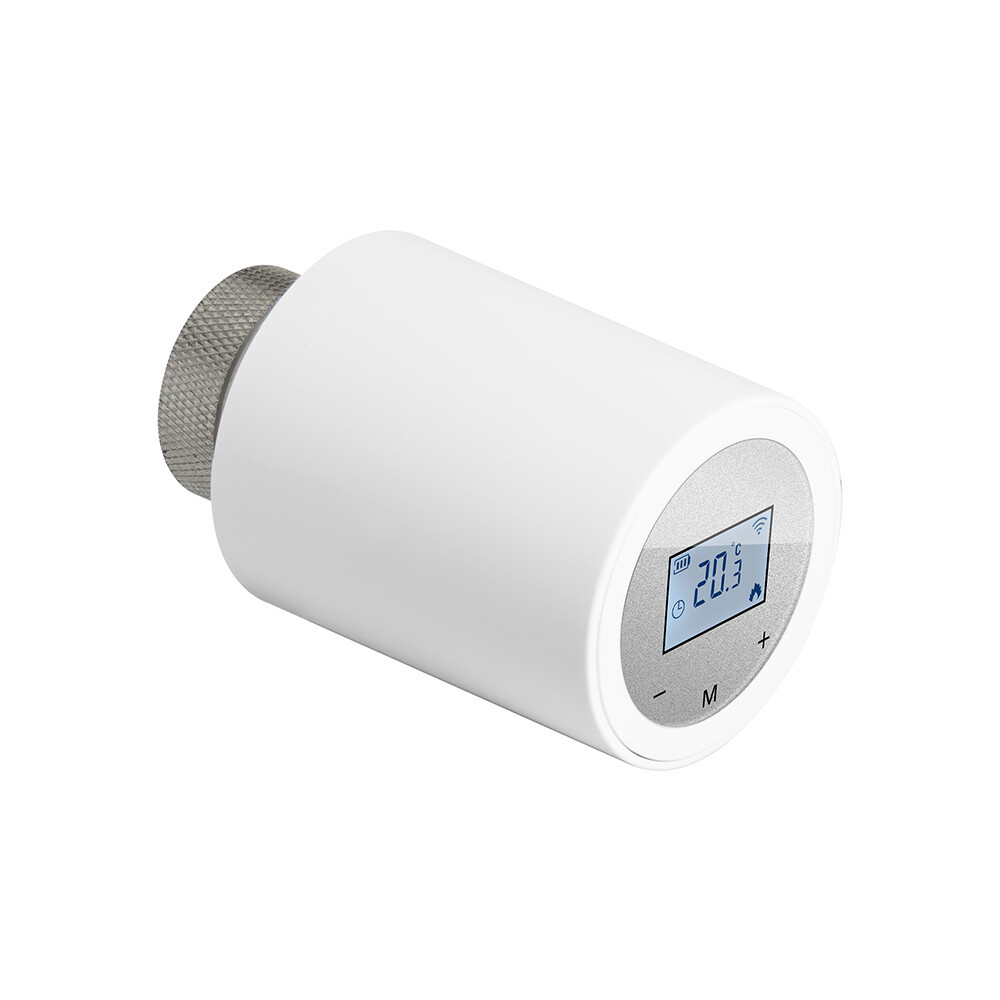

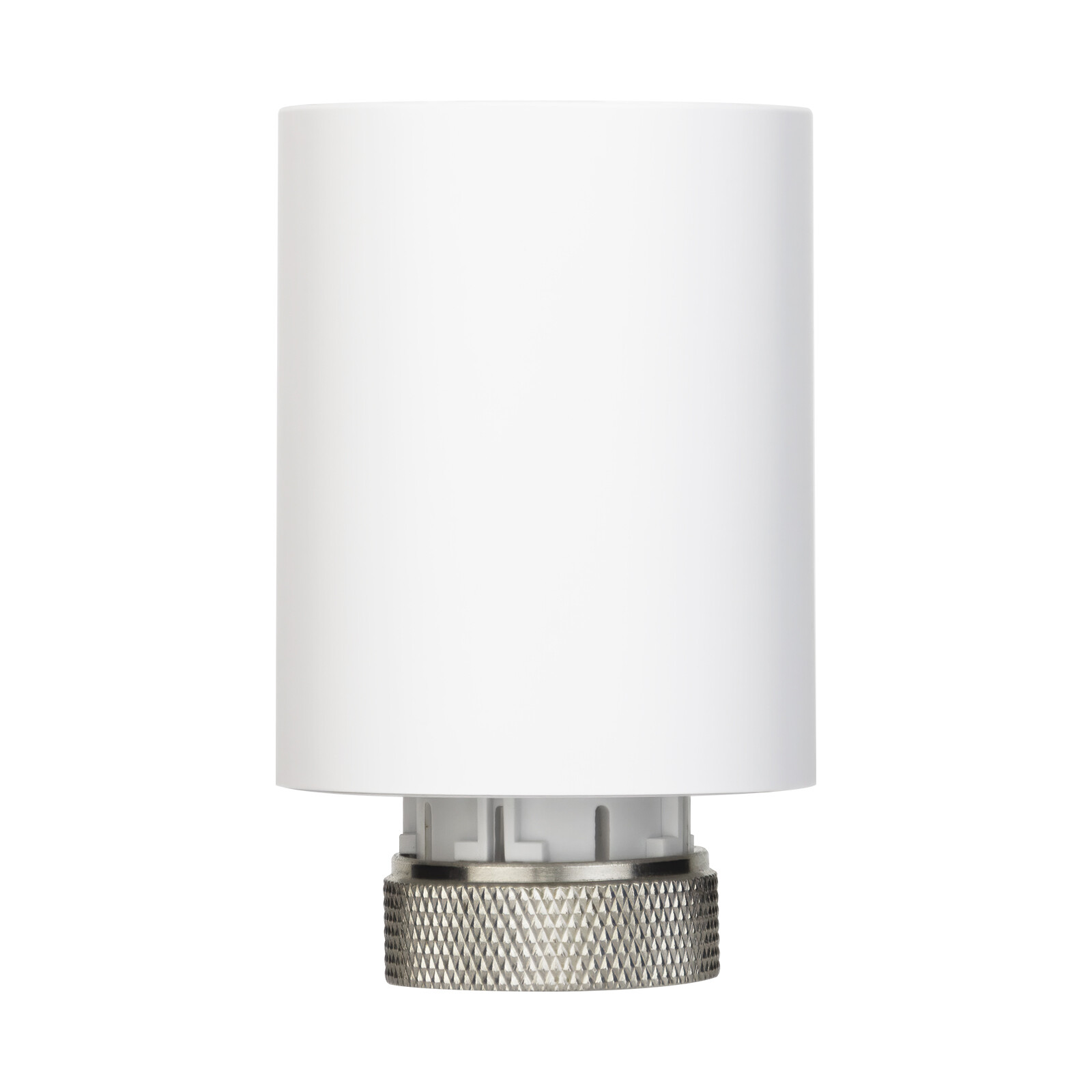

M30x1.5mm Radiator Valve

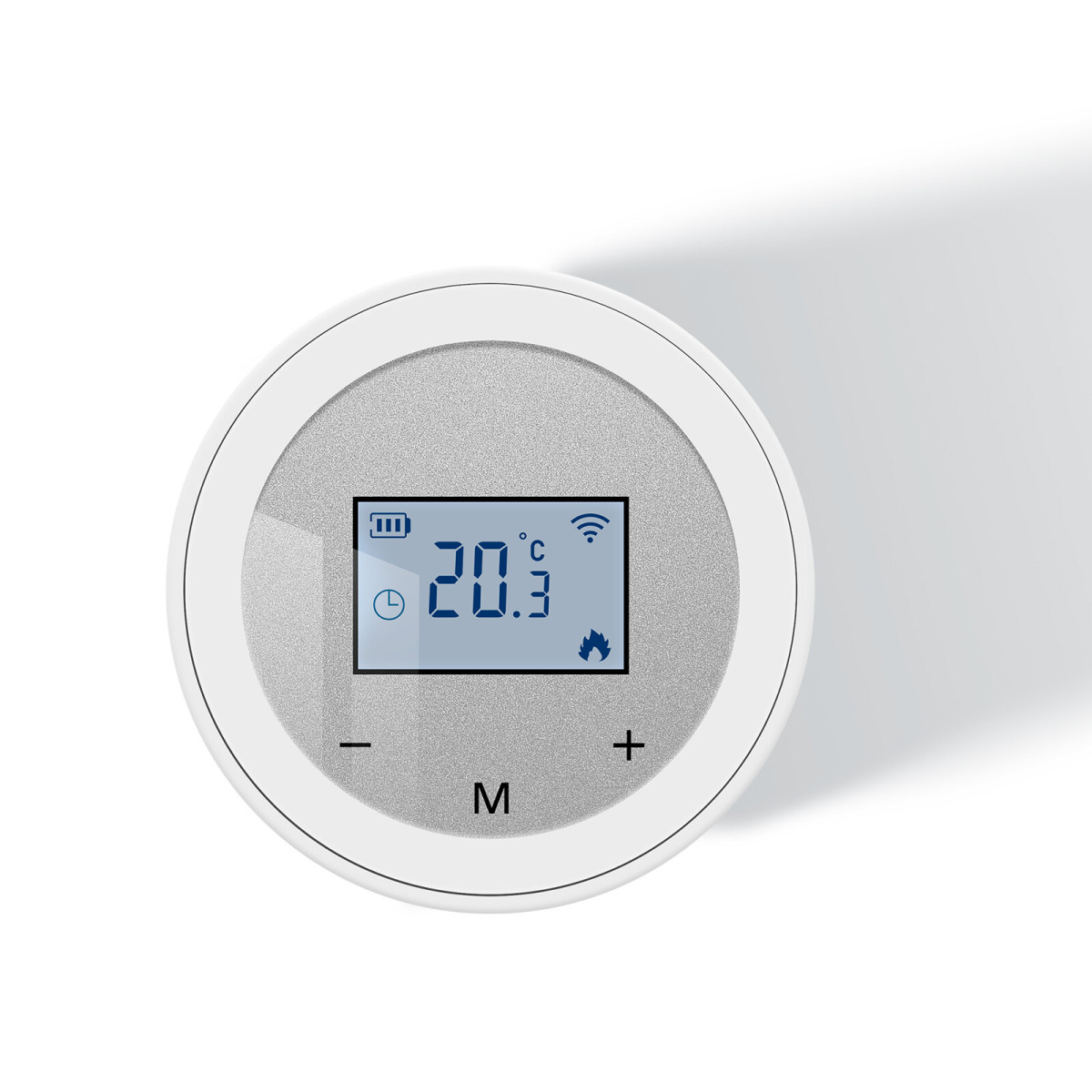

Smart TRV



Product Functions

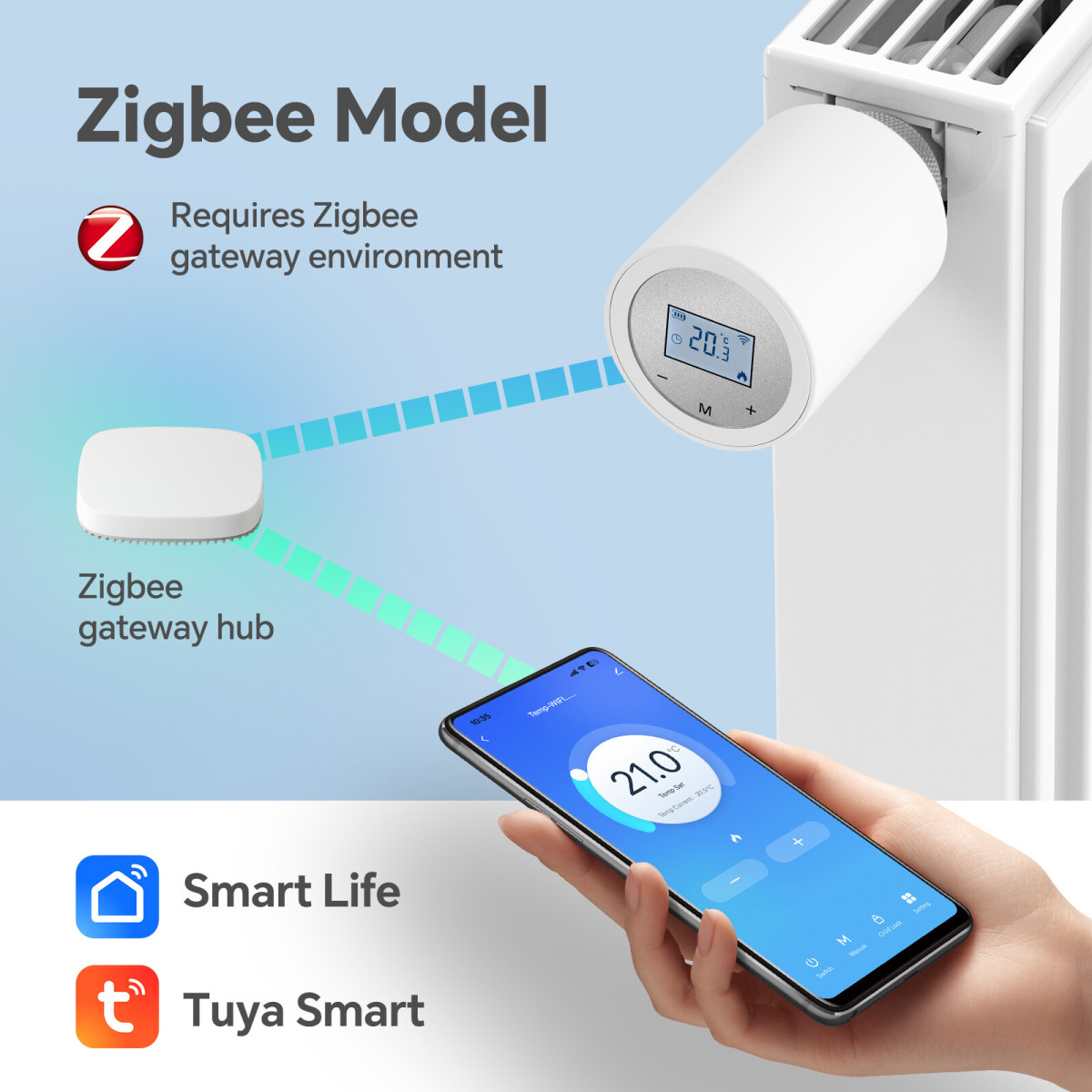

main04-1600x1600-ZB



App Control


TRV-803ZB works with Tuya app and Smart Life app, you can control it via phone anywhere and anytime.


main08-1600x1600



Open window Detection


TRV-803ZB has a special function-open window detection, to help you save energy bill.

main06-1600x1600



Weekly Programmable


The weekly programming function can set the temperature at different times.


Specifications & Contents


main10-1600x1600


The dimensions of the TRV-803ZB are 53*87 mm.

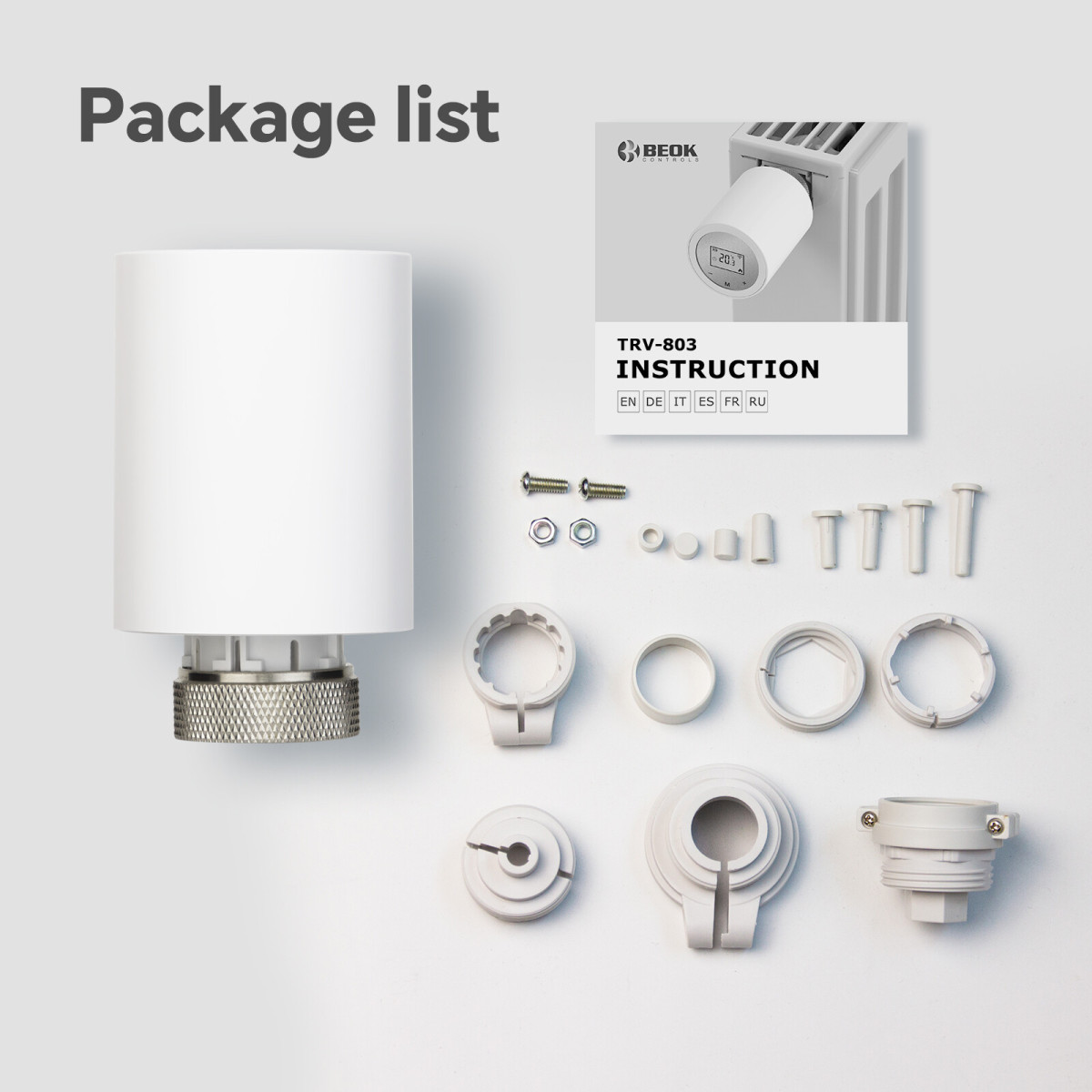

The standard package of the TRV-803ZB thermostatic radiator valve includes the following accessories:


Thermostatic Radiator Valve

Instruction

Adaptor Pack



FAQS


1. Q: Can I control multiple Zigbee TRVs individually or in groups?

   A: Yes, most Zigbee TRVs support both individual and group control. You can set unique temperatures for each radiator via the app, or create groups (e.g., “Living Room” or “Upstairs”) to adjust multiple valves simultaneously for consistent comfort.


2. Q: Why is my Zigbee TRV not responding to app commands?

    A: Common reasons include weak Zigbee signal (move the hub closer or add a Zigbee repeater), dead batteries, or lost pairing. Check signal strength in the app, replace batteries, and re-pair the valve with the hub if the connection drops.


3. Q: Can a Zigbee TRV work without internet, and does it support scheduling?

    A: It works locally with a Zigbee hub (no internet needed) for basic temperature control and pre-set schedules. Internet access is only required for remote control via smartphone, voice commands, or syncing with weather data for adaptive heating.


4. Q: How long is the product warranty period?

    A: Our products come with a 2-year free warranty. If there is a quality issue (such as failure to turn on or unresponsive buttons) after you receive the goods, you can contact the after-sales customer service and provide the order number and photos of the problem. We will arrange for a replacement or repair.
