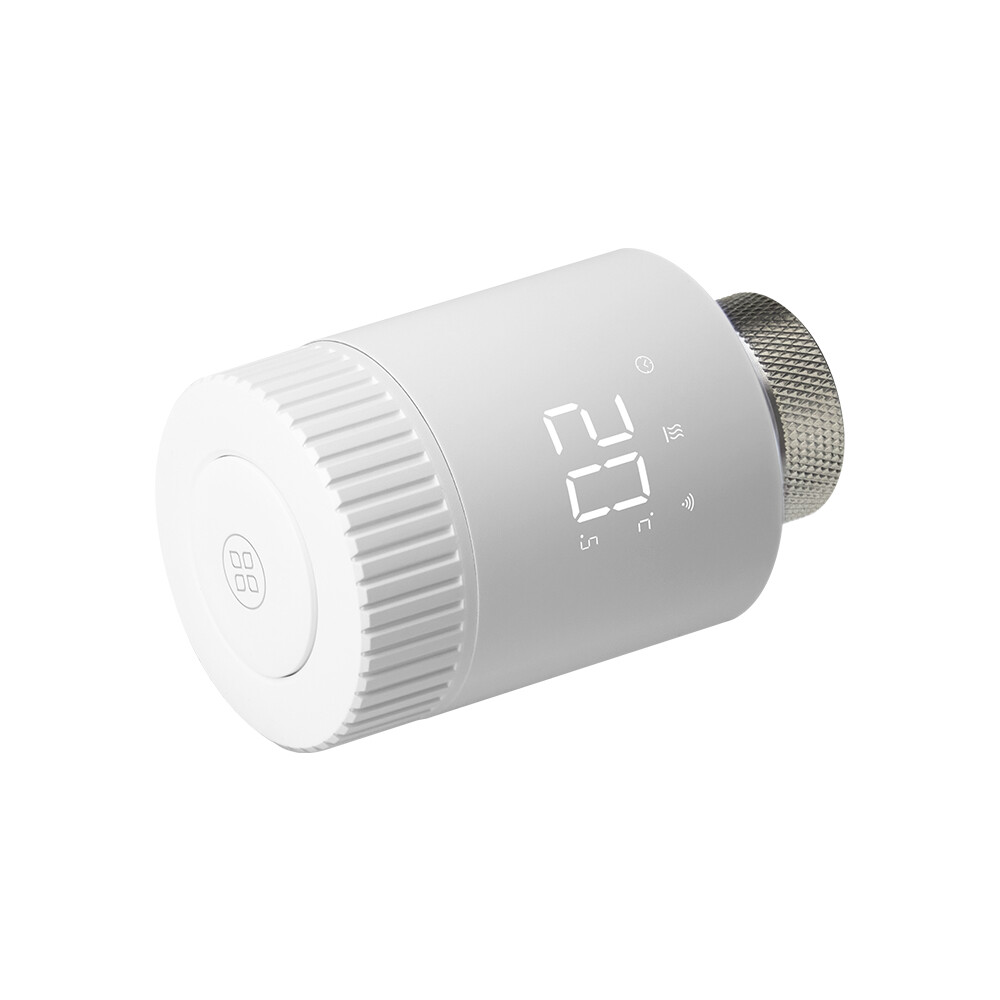

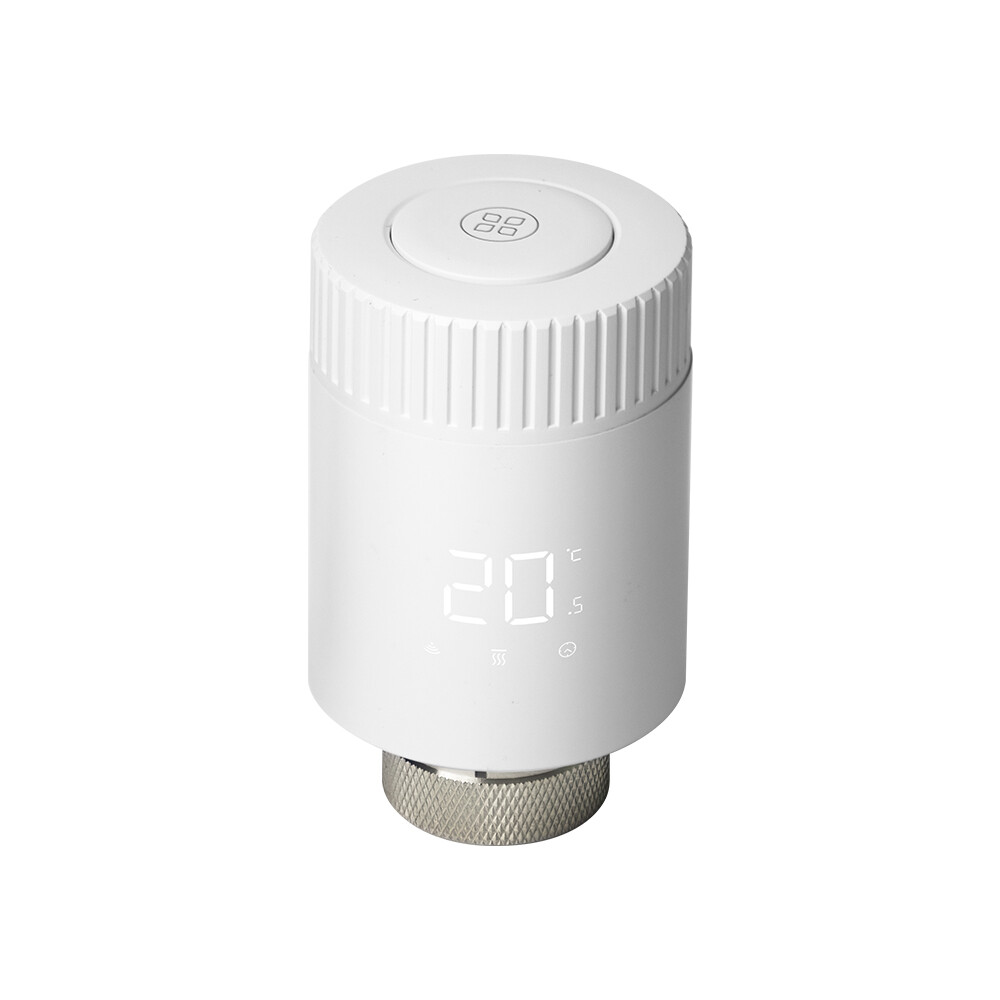

TRV
TRV-M2Z

About this item

• Room Thermostatic Radiator Valve

• Supply: Battery Powered

• Load Current: 6uM Min

• Connection: M30*1.5 mm

• Linear Travel: 6 mm

• Color: White

• Protective Class: IP20

• Sensor: NTC


Video




Technical Data


Model Name
TRV-M2Z
Power3*1.5V AA Batteries
Standby Current6uM Min
Operating Temp.0~50℃ indoor using only
Storge Temp.-20~70℃
Protective ClassIP20
Surface Temperature90℃ Max
ConnectionM30*1.5mm
SensorNTC
CertificatesCE / RED/ ROHS
Warranty24 months



Model Spec


TRV-M2Z
3*1.5V AA Batteries
6uM Min
Zigbee Remote Control

√ APP Control

M30*1.5mm
White



Product Display

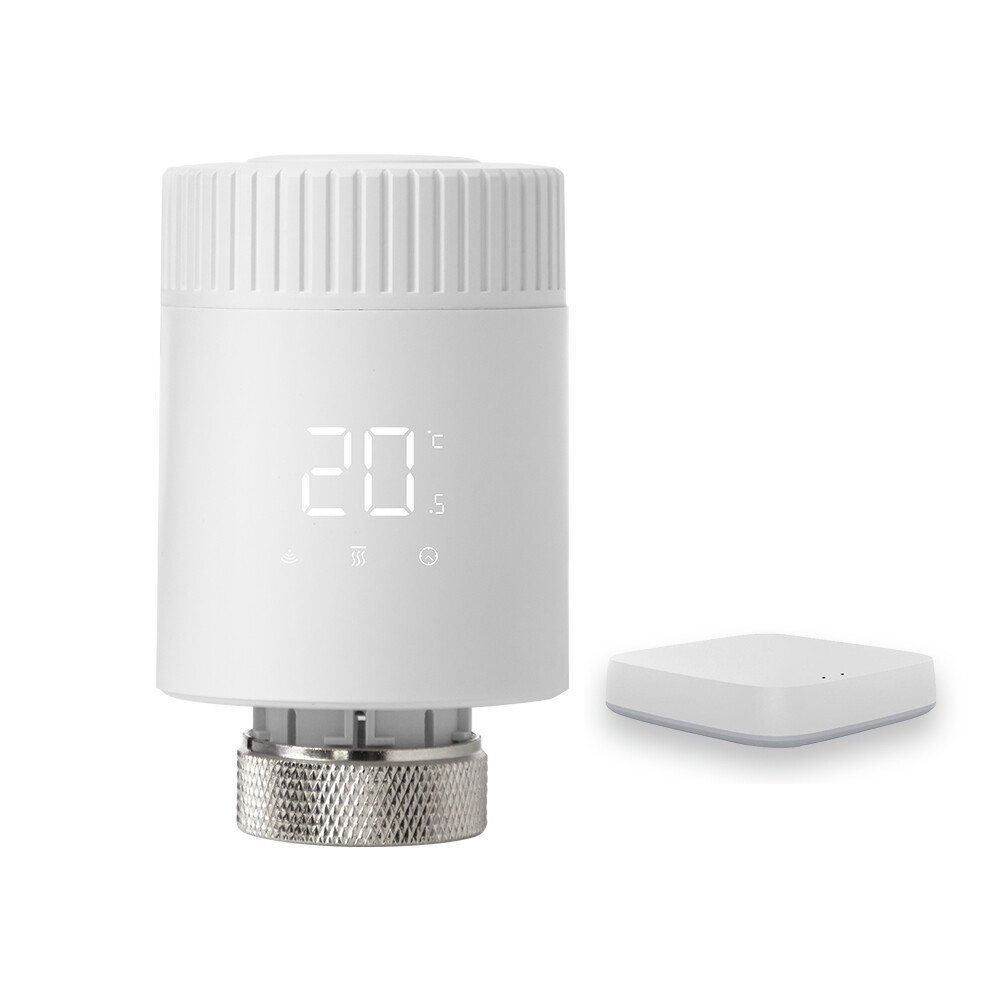

TRV-M2Z Zigbee Smart Thermostatic Radiator Valve (TRV) represents a new generation of intelligent room-by-room heating control. Designed with both performance and aesthetics in mind, this compact device delivers exceptional temperature precision, energy efficiency, and user convenience - all while integrating seamlessly into Tuya Zigbee-based smart home system. Through connecting with Zigbee Hub, the TRV allows remote monitoring and control via mobile app or voice assistant, offers fast, stable, and secure wireless communication, while consuming minimal power.



Crafted from high-quality materials and built with a powerful stepper motor, this Smart Zigbee Radiator Actuator ensures accurate valve positioning for precise temperature control. Its soft-touch rotating cap, sleek cylindrical design, and clear LED display make it both intuitive to use and visually pleasing in any room setting. This smart radiator valve supports hot water radiators heating systems, its universal M30 x 1.5mm threaded connector and included adapter set ensure compatibility with over 90% of radiator valves on the market.

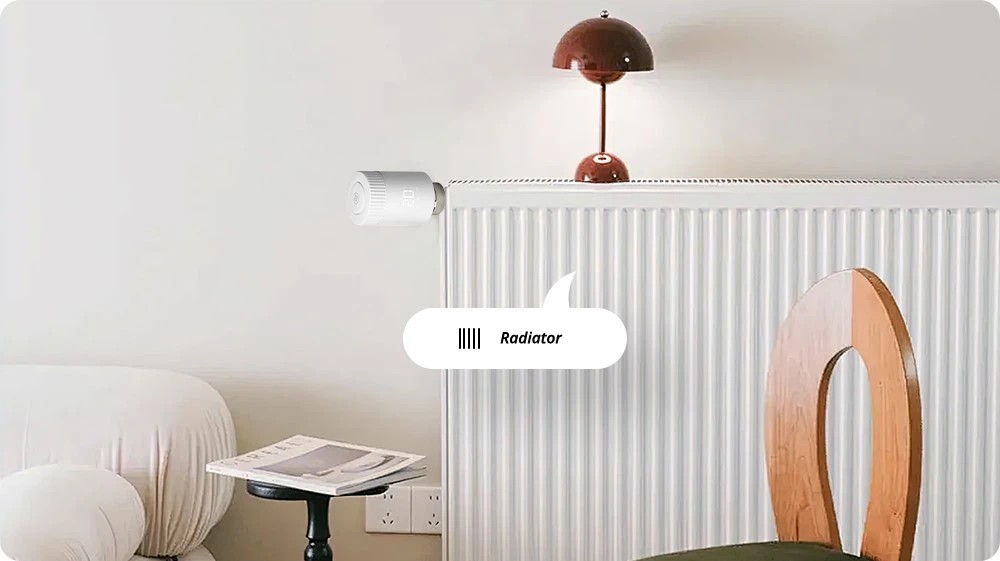

M2Z海报


Real Photos Display

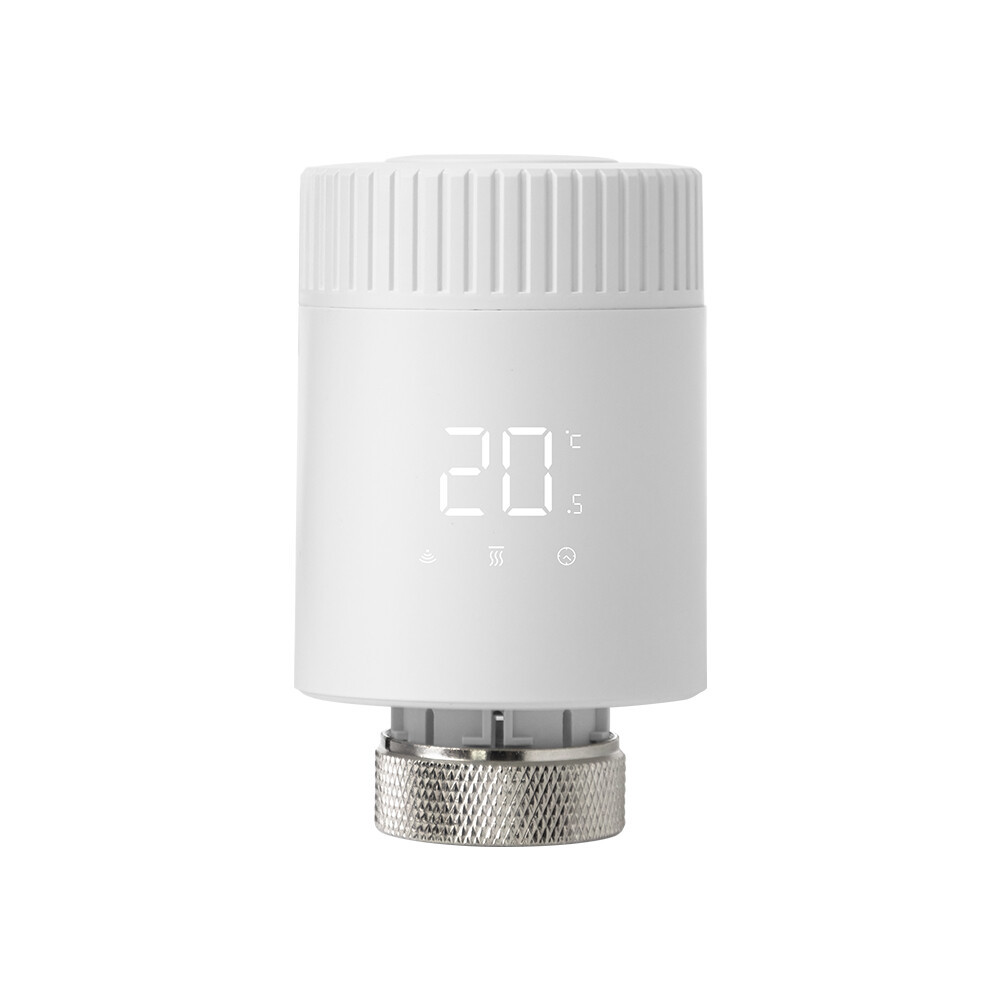

Zigbee-Thermostatic-Radiator-Valve

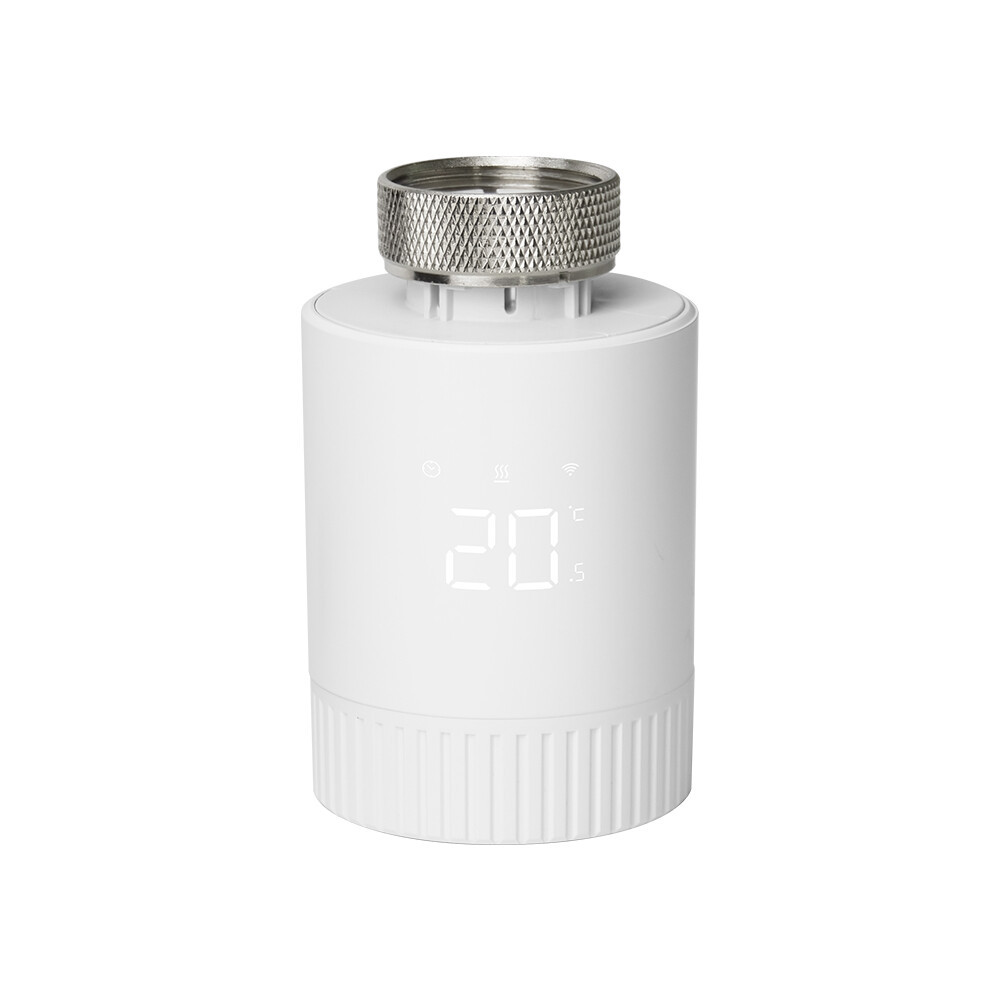

LED-Screen-Valve


Digital-Smart-Valve

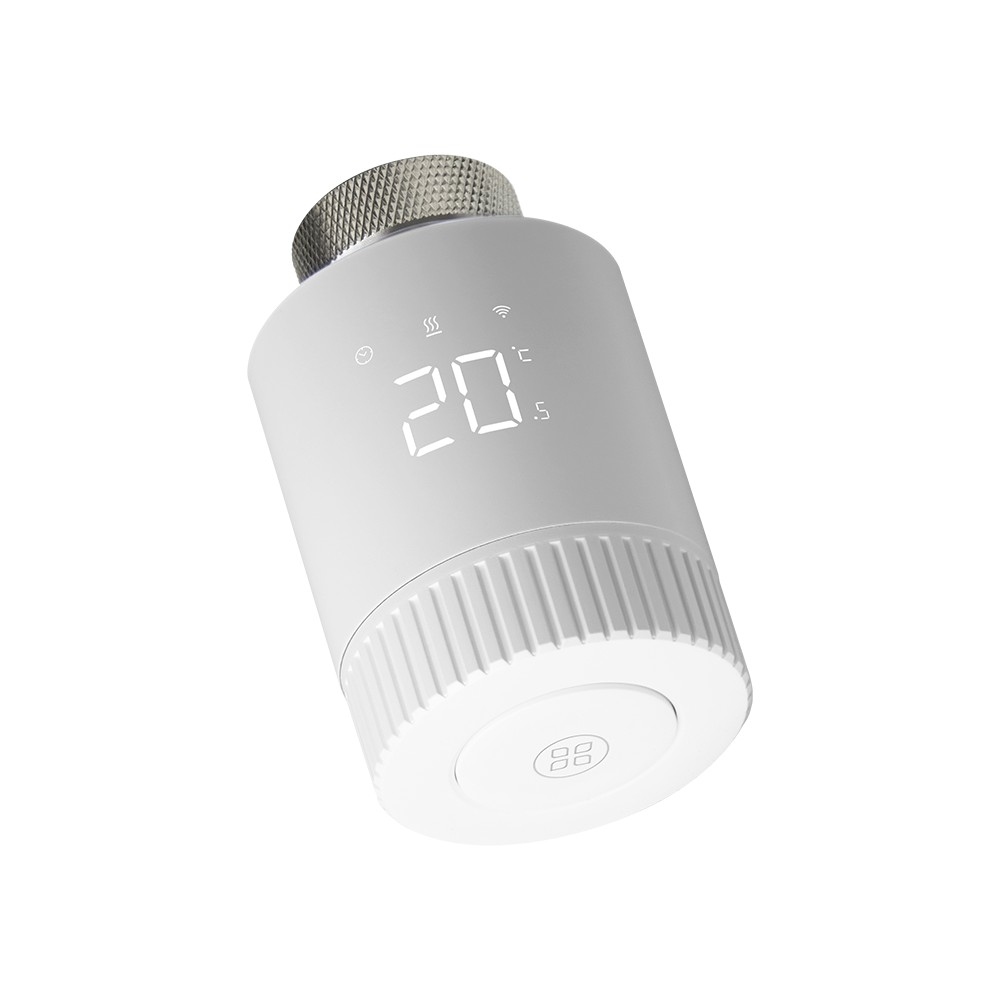

M2Z



Product Functions


main03-2000x2000-EN



App Control


TRV-M2Z works with Tuya app and Smart Life app, you can control it via phone anywhere and anytime.


main01-2000x2000-EN

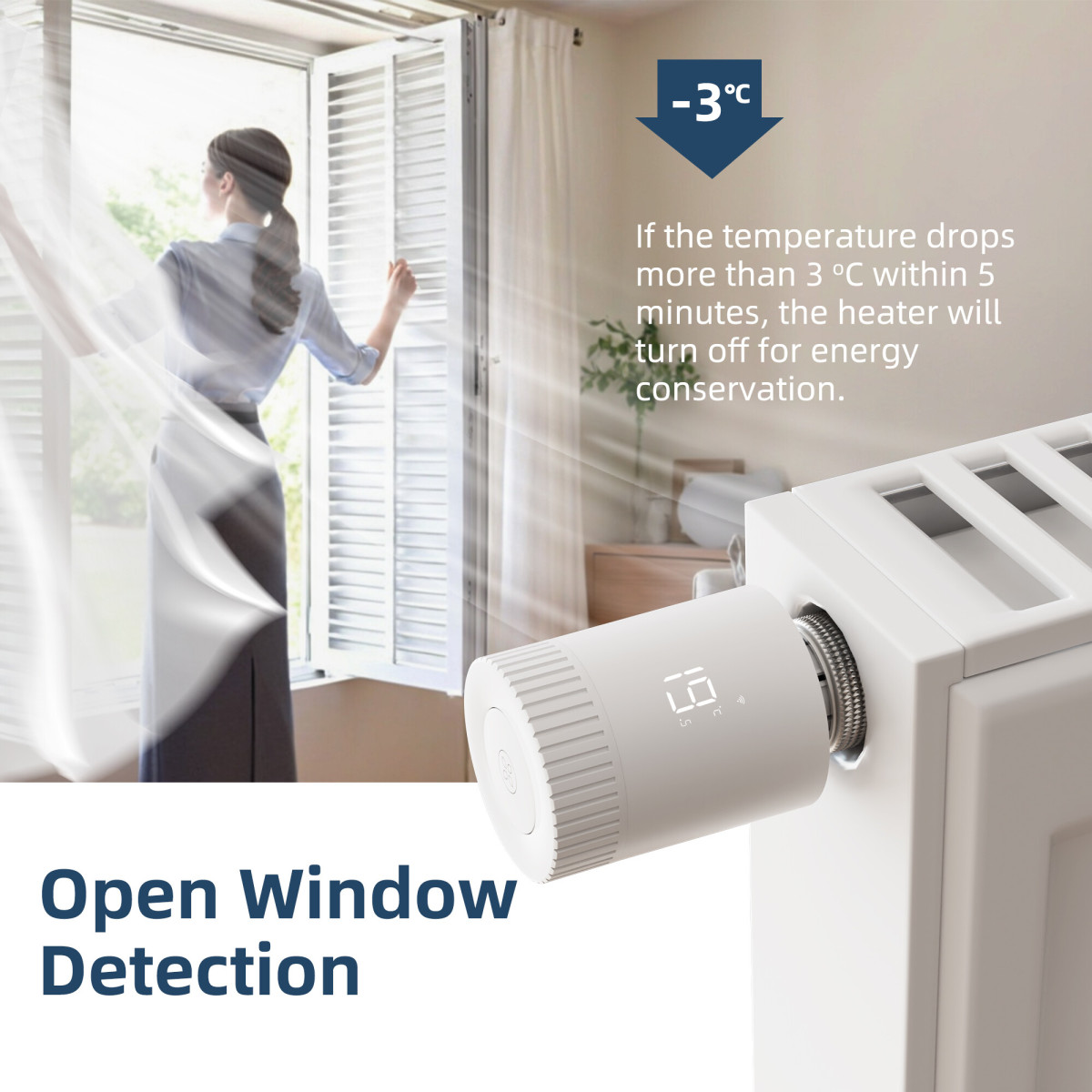

Open window Detection


TRV-M2Z has a special function-open window detection, to help you save energy bill.

main04-2000x2000-ZB-EN

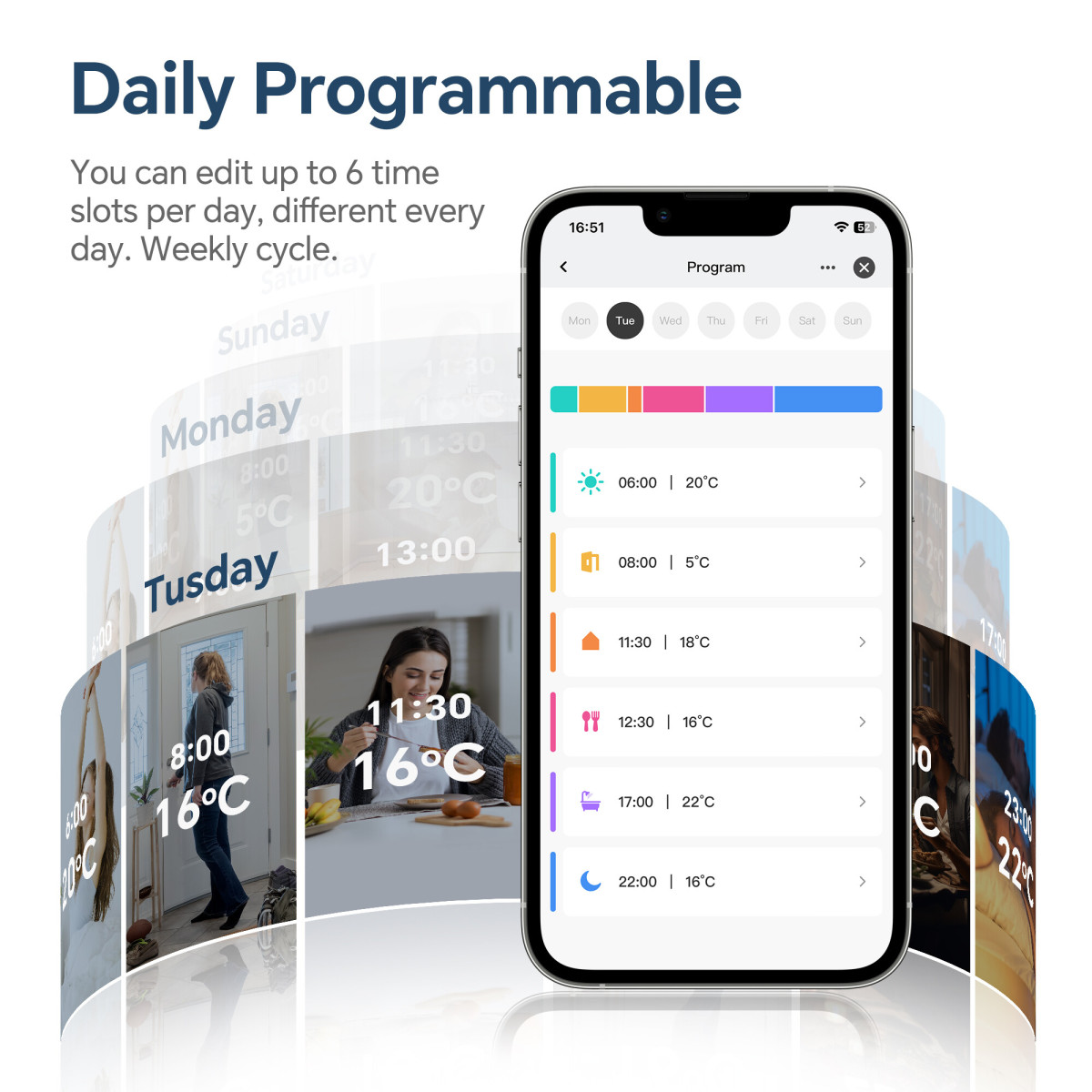

Daily Programmable


The daily programming function can set the temperature at different times.


Specifications & Contents


main06-2000x2000-ZB-EN






The dimensions of the TRV-M2Z are 54*89 mm.

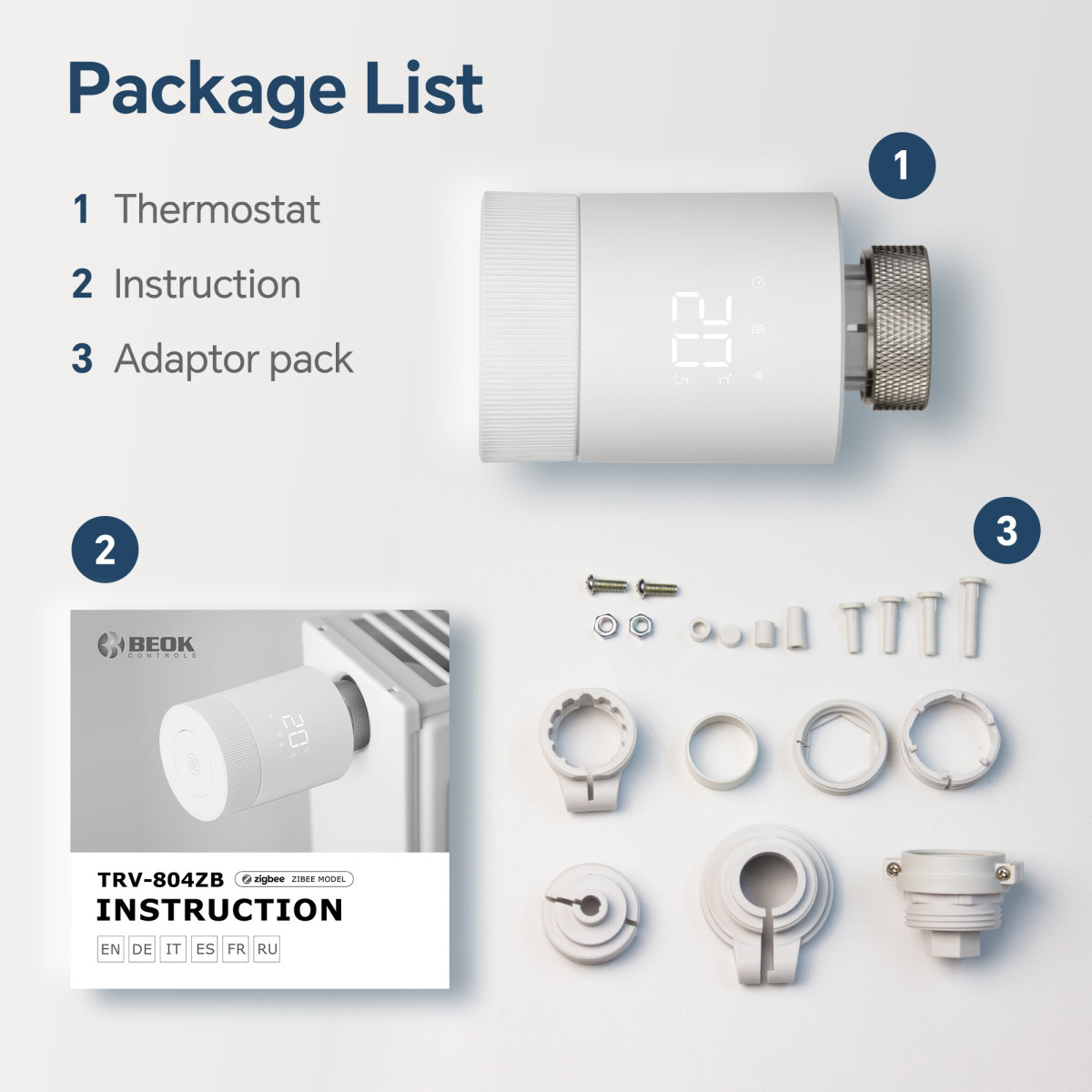

The standard package of the TRV-M2Z thermostatic radiator valve includes the following accessories:



Thermostatic Radiator Valve

Instruction

Adaptor Pack


FAQS


1. Q: Can I control multiple Zigbee TRVs individually or in groups?

   A: Yes, most Zigbee TRVs support both individual and group control. You can set unique temperatures for each radiator via the app, or create groups (e.g., “Living Room” or “Upstairs”) to adjust multiple valves simultaneously for consistent comfort.


2. Q: Why is my Zigbee TRV not responding to app commands?

    A: Common reasons include weak Zigbee signal (move the hub closer or add a Zigbee repeater), dead batteries, or lost pairing. Check signal strength in the app, replace batteries, and re-pair the valve with the hub if the connection drops.


3. Q: Can a Zigbee TRV work without internet, and does it support scheduling?

    A: It works locally with a Zigbee hub (no internet needed) for basic temperature control and pre-set schedules. Internet access is only required for remote control via smartphone, voice commands, or syncing with weather data for adaptive heating.


4. Q: How long is the product warranty period?

    A: Our products come with a 2-year free warranty. If there is a quality issue (such as failure to turn on or unresponsive buttons) after you receive the goods, you can contact the after-sales customer service and provide the order number and photos of the problem. We will arrange for a replacement or repair.
