TRV
TRV-804ZB

About this item

• Room Thermostatic Radiator Valve

• Supply: Battery Powered

• Load Current: 6uM Min

• Connection: M30*1.5 mm

• Linear Travel: 6 mm

• Color: White

• Protective Class: IP20

• Sensor: NTC


Video




Technical Data


Model Name
TRV-804ZB
Power3*1.5V AA Batteries
Standby Current6uM Min
Operating Temp.0~50℃ indoor using only
Storge Temp.-20~70℃
Protective ClassIP20
Surface Temperature90℃ Max
ConnectionM30*1.5mm
SensorNTC
CertificatesCE / RED/ ROHS
Warranty24 months



Model Spec


TRV-804ZBTRV-804WF
3*1.5V AA Batteries3*1.5V AA Batteries
6uM Min6uM Min
Zigbee Remote ControlWifi Remote Control

√ APP Control

 √ APP Control
M30*1.5mmM30*1.5mm
WhiteWhite



Product Display


TRV-804ZB is a remote control thermostatic radiator valve for radiator heating system. User can connect the smart valve with the tuya zigbee gateway, then user can set the room temperature, program the auto mode, close/open the child lock, and modify the advanced settings on the phone remotely. Even if user does not connect the valve with zigbee gateway, the radiator thermostat still works normally, you can adjust the valve on the device manually.


804海报


Real Photos Display

主图尺寸-3


Remote Control Valve TRV-804ZB


主图尺寸-2


主图尺寸-1



Product Functions


main04-1600x1600-ZB

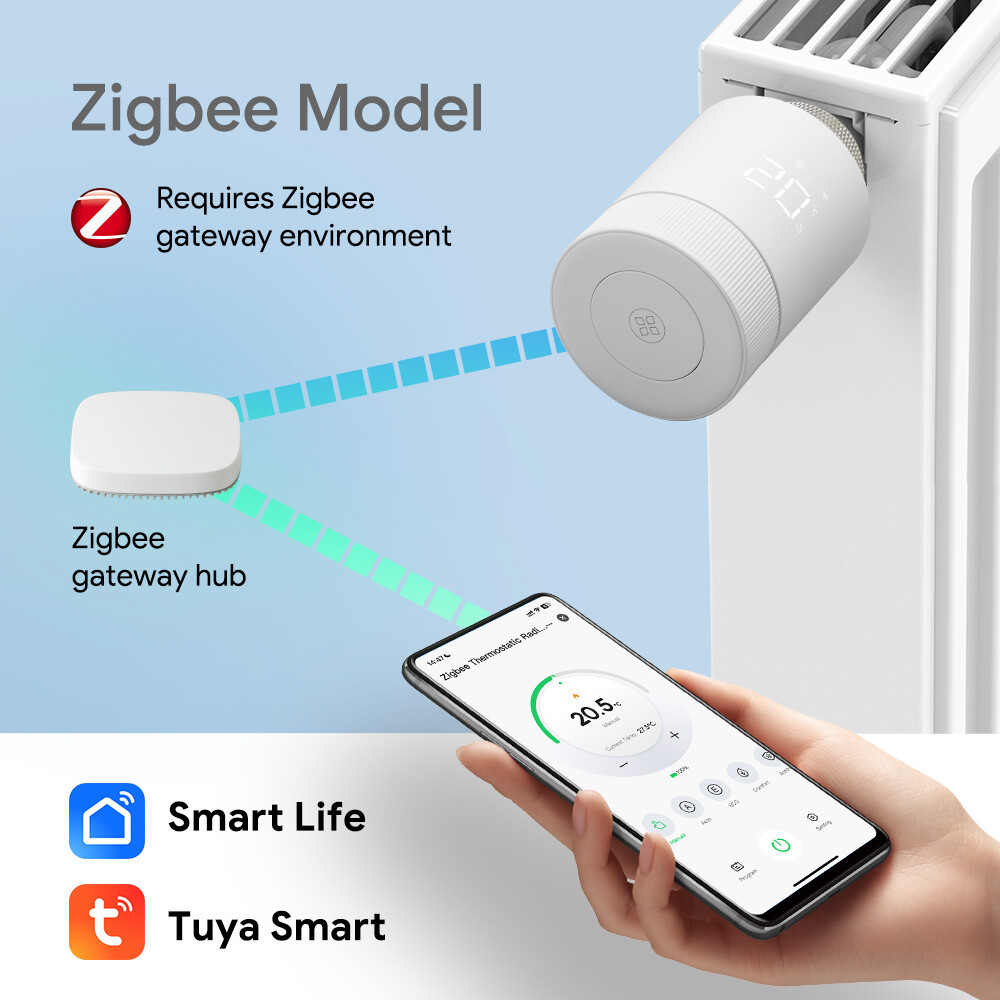

App Control


TRV-804ZB works with Tuya app and Smart Life app, you can control it via phone anywhere and anytime.


main09



Open window Detection


TRV-804ZB has a special function-open window detection, to help you save energy bill.

main06-ZB



Daily Programmable


The daily programming function can set the temperature at different times.


Specifications & Contents


09






The dimensions of the TRV-804ZB are 54*89 mm.



The standard package of the TRV-804ZB thermostatic radiator valve includes the following accessories:



Thermostatic Radiator Valve

Instruction

Adaptor Pack


FAQS


1. Q: Can I control multiple Zigbee TRVs individually or in groups?

   A: Yes, most Zigbee TRVs support both individual and group control. You can set unique temperatures for each radiator via the app, or create groups (e.g., “Living Room” or “Upstairs”) to adjust multiple valves simultaneously for consistent comfort.


2. Q: Why is my Zigbee TRV not responding to app commands?

    A: Common reasons include weak Zigbee signal (move the hub closer or add a Zigbee repeater), dead batteries, or lost pairing. Check signal strength in the app, replace batteries, and re-pair the valve with the hub if the connection drops.


3. Q: Can a Zigbee TRV work without internet, and does it support scheduling?

    A: It works locally with a Zigbee hub (no internet needed) for basic temperature control and pre-set schedules. Internet access is only required for remote control via smartphone, voice commands, or syncing with weather data for adaptive heating.


4. Q: How long is the product warranty period?

    A: Our products come with a 2-year free warranty. If there is a quality issue (such as failure to turn on or unresponsive buttons) after you receive the goods, you can contact the after-sales customer service and provide the order number and photos of the problem. We will arrange for a replacement or repair.
