Gas Boiler Thermostat
BOT-313W-WIFI

About this item

• To Control Gas Boiler

• Supply: 2 x AA Batteries

• Load Current: 3A

• Sensor: Only Internal Air Sensor

• Connection: Wired

• Programmable: Weekly Programmable

• Wi-Fi enabled, supports remote app & voice control

• App Control: Beok Home

• Voice Control: GoogleHome / Amazon Alexa / Yandex Alice

• Mounting Type: Suface Mounting

• Color: White

• Dimensions: 86x86x14 mm



Video





Technical Data


Model Name
BOT-313W-WIFI
Power2 x AA Batteries
Temperature Precision±0.5℃
Temperature Range5℃~60 ℃
Temperature Calibration-9.9℃~9.9℃
Temperature Hysteresis0.5℃~10℃
Temperature SensorNTC
Load Current3A (resistant)
Self-consumption Power<170 μW
App ControlBeok Home
Voice ControlGoogleHome / Amazon Alexa / Yandex Alice (only for WiFi version)
Programmable functionWeekly Program
Temperature SensorInternal Air Sensor
CertificatesCE / RED/ ROHS
Warranty24 months



Model Spec


BOT-313WBOT-313W-WIFI
2 x AA Batteries2 x AA Batteries
3A3A
Gas Boiler HeatingGas Boiler Heating

× Wireless

× Wireless

× APP Control

 √ APP Control

 √ Air Sensor  √ Air Sensor
× Floor Sensor× Floor Sensor
Surface MountingSurface Mounting
White / BlueWhite / Blue



Product Display

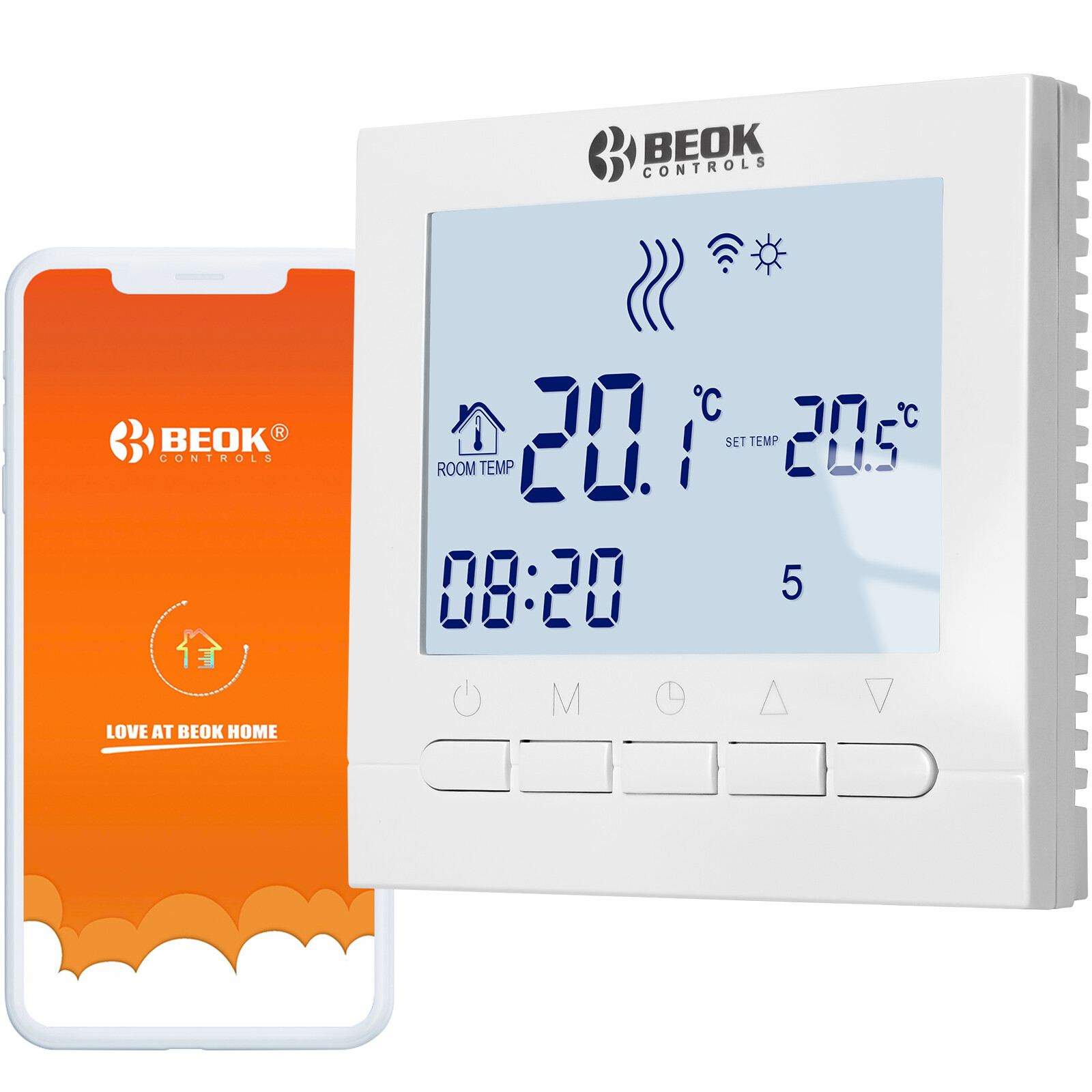

BOT-313WIFI is a Smart Thermostat for boiler system, It is a traditional design button press type room heating thermostat, which can control thermal actuators and gas boilers.


BOT-313WIFI Room Thermostat has WiFi remote control function by our own Beok Home application on phone, and also support Goole Home and Amazon Alexa voice assistant.


BOT-313WIFI LCD Screen Thermostat with digital display screen and the temperature display in big words so it is very easy to read the temperature.

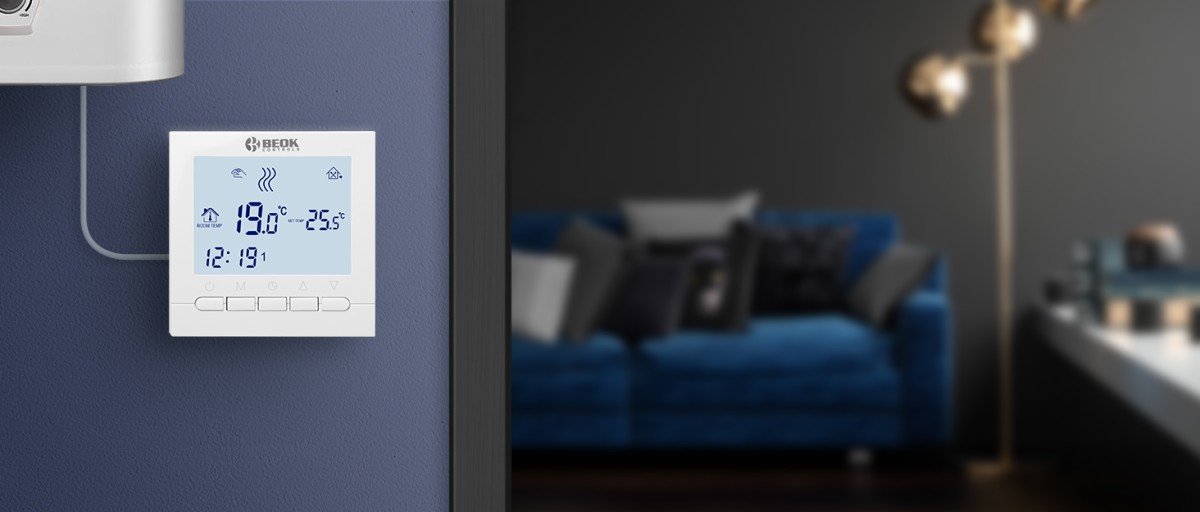

313wifi


Real Photos Display

main

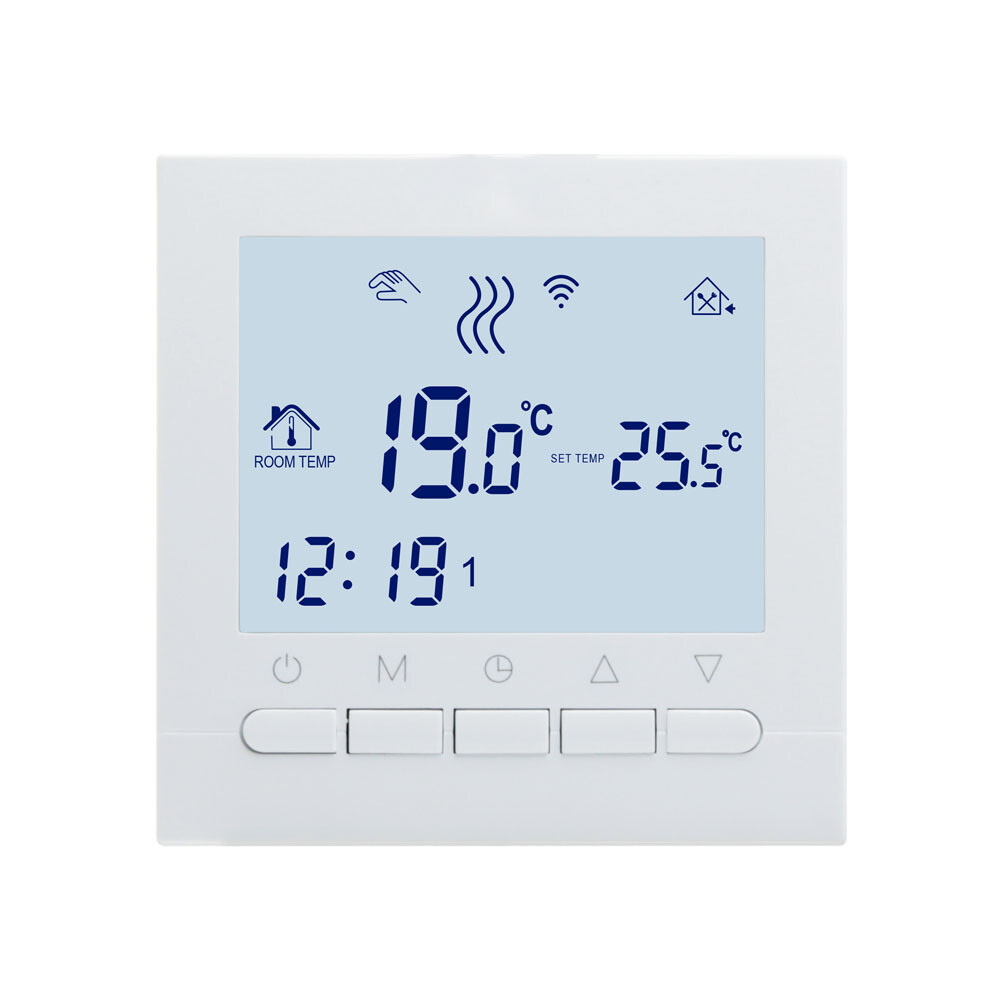

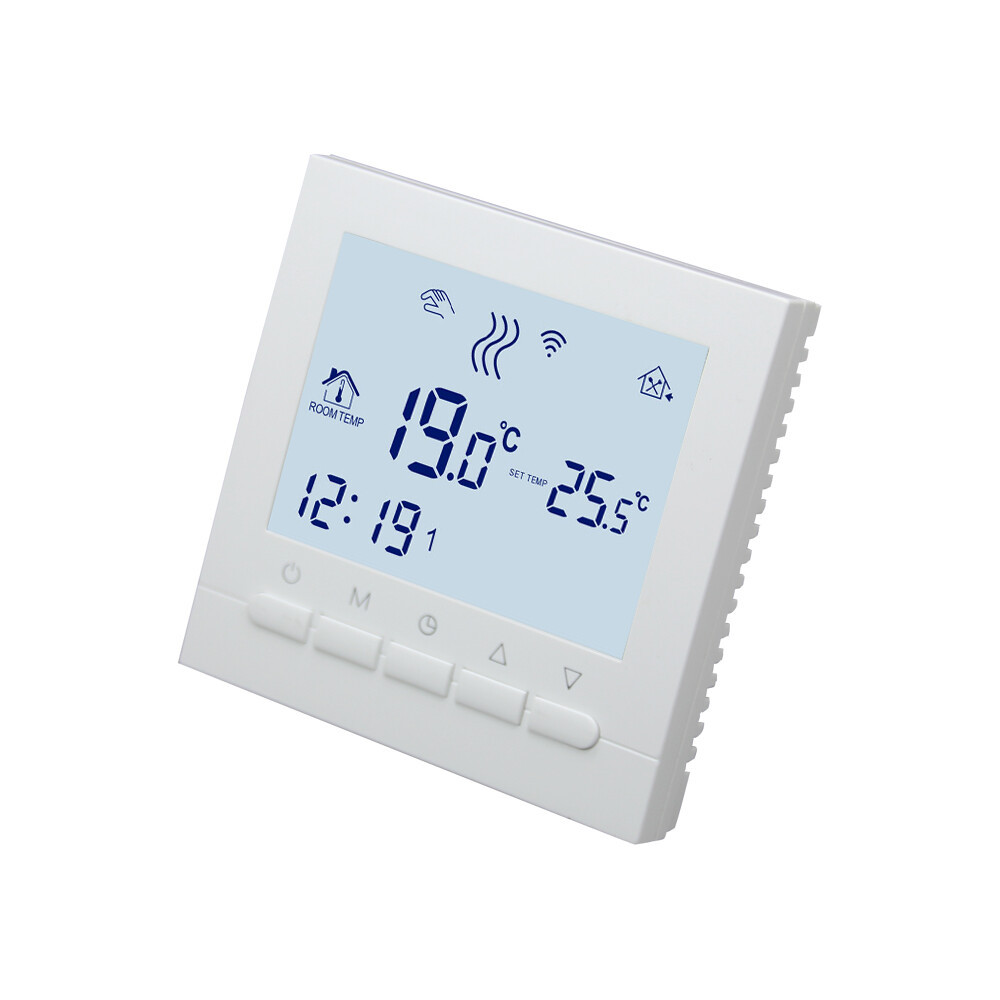

Press button digital thermostat BOT-313WIFI

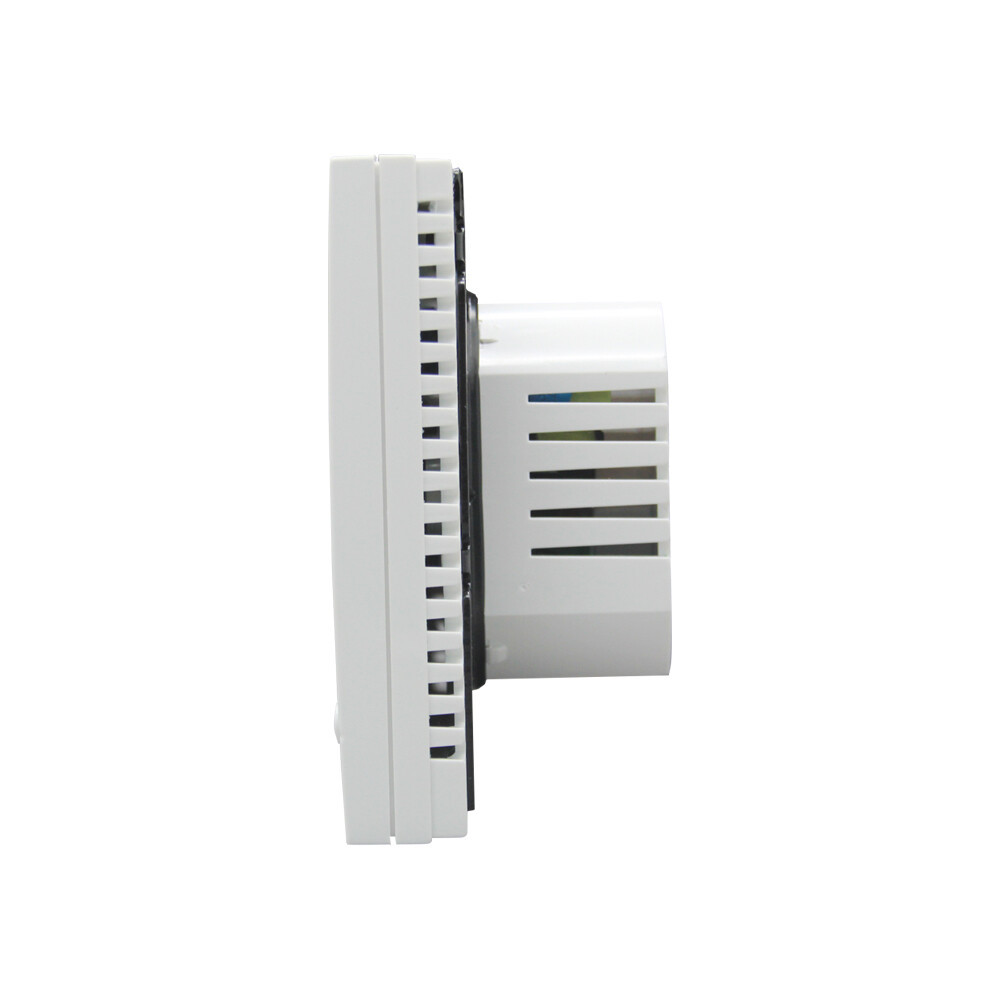

Beok smart thermostat for boiler system

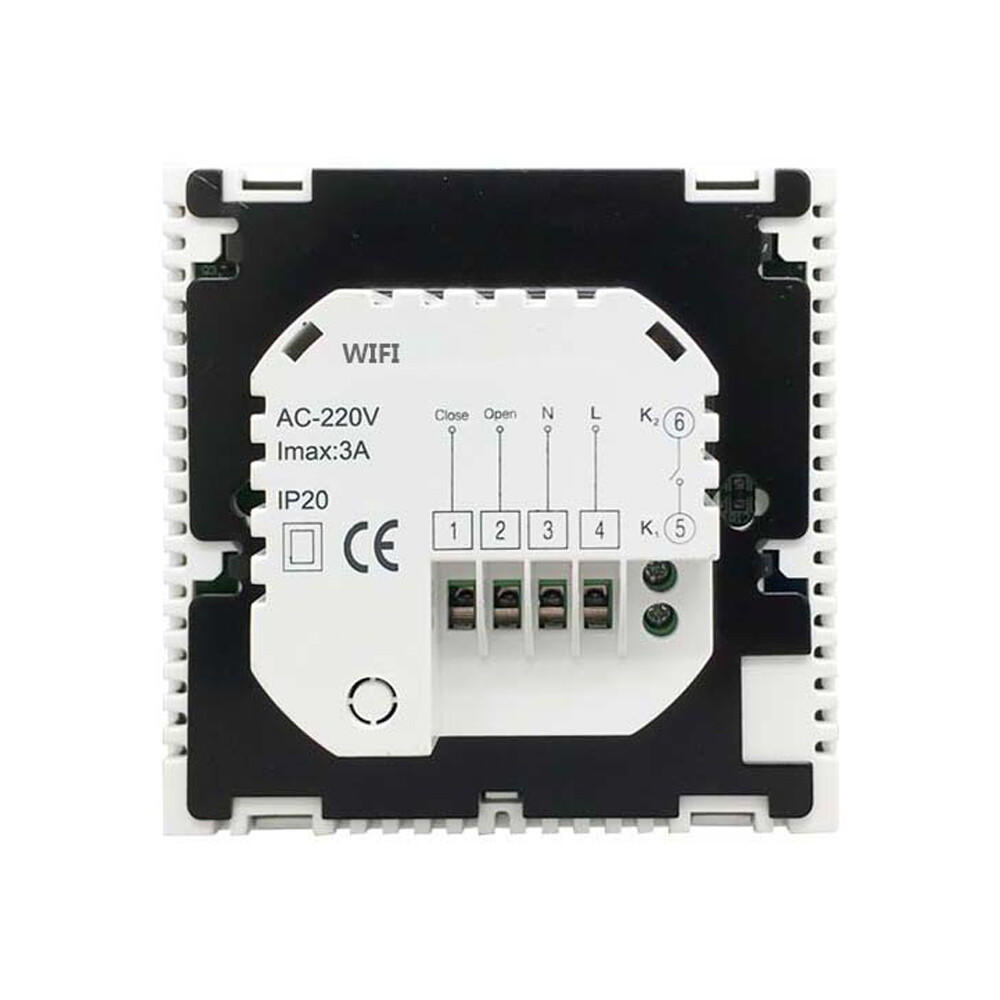

WiFi Gas Boiler Heating Thermostat


Product Functions


BOT-313W-WIFI 01


APP Control


BOT-313W-WIFI series Thermostat works with Beok Home app, you can control it via phone anywhere and anytime.

03


Voice Control


BOT-313W-WIFI series wifi thermostat is compatible with Google Home, Amazon Alexa, Yandex Alice, etc.



11


Weekly Programmable


The weekly programming function can set the temperature at different times.

Specifications & Contents


10

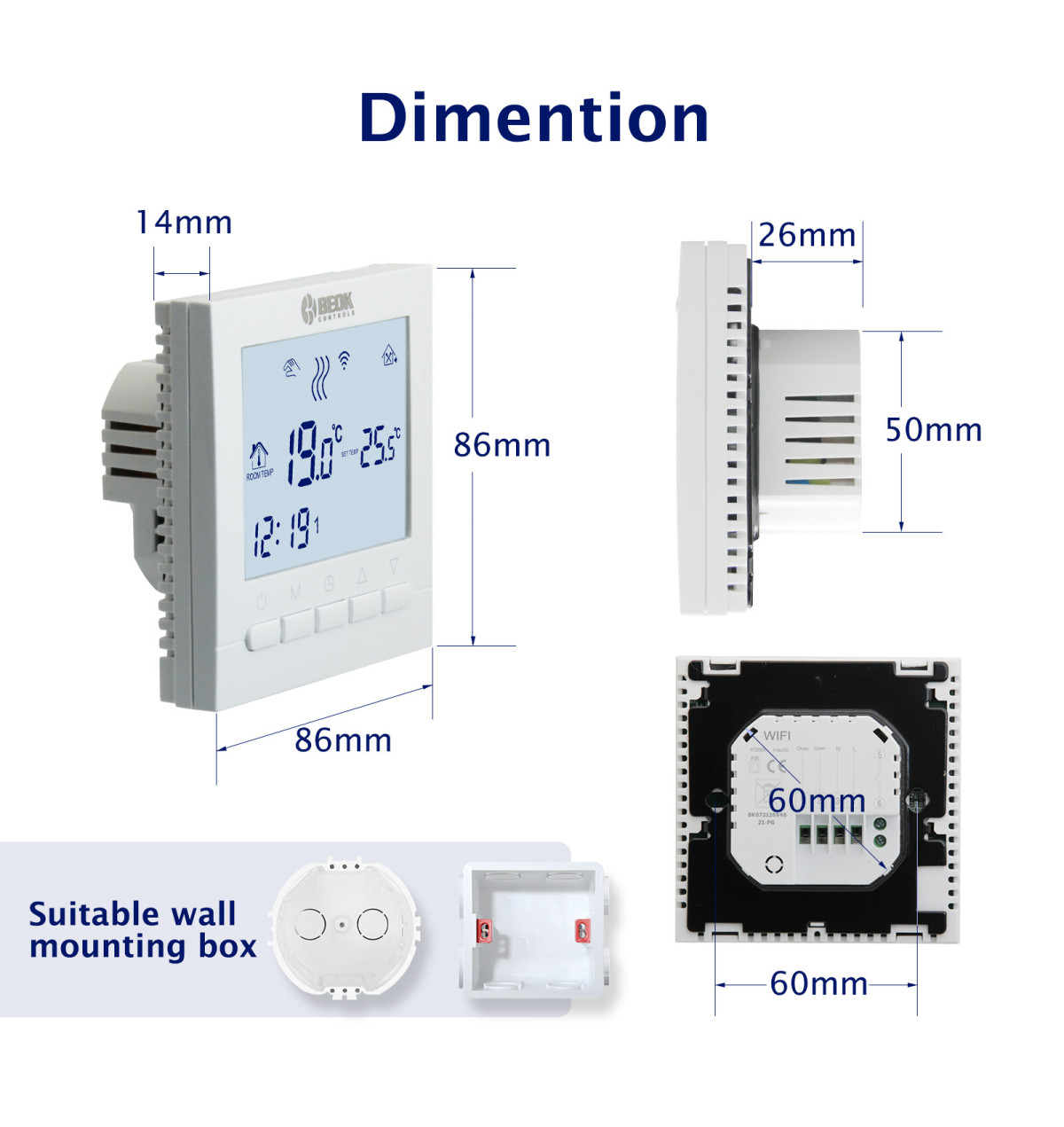

The dimensions of the BOT-313W-WIFI Thermostat are 86*86*14 mm.


Its center hole spacing is 60 mm.

006


When installing the thermostat, please note:


First ensure the power supply voltage matches the thermostat's rated AC100 - 240V range and turn off the power before wiring.


Correctly connect the live wire (L) to terminal 1 and neutral wire (N) to terminal 2 as per the diagram.


For the dry contact, properly link terminals 4 and 5 to the corresponding components of the gas boiler system. Ensure all connections are tight to avoid poor contact.


Also, keep the thermostat away from water and excessive heat sources to prevent malfunctions. After installation, restore power and test the thermostat's operation to confirm it works properly with the gas boiler.


15

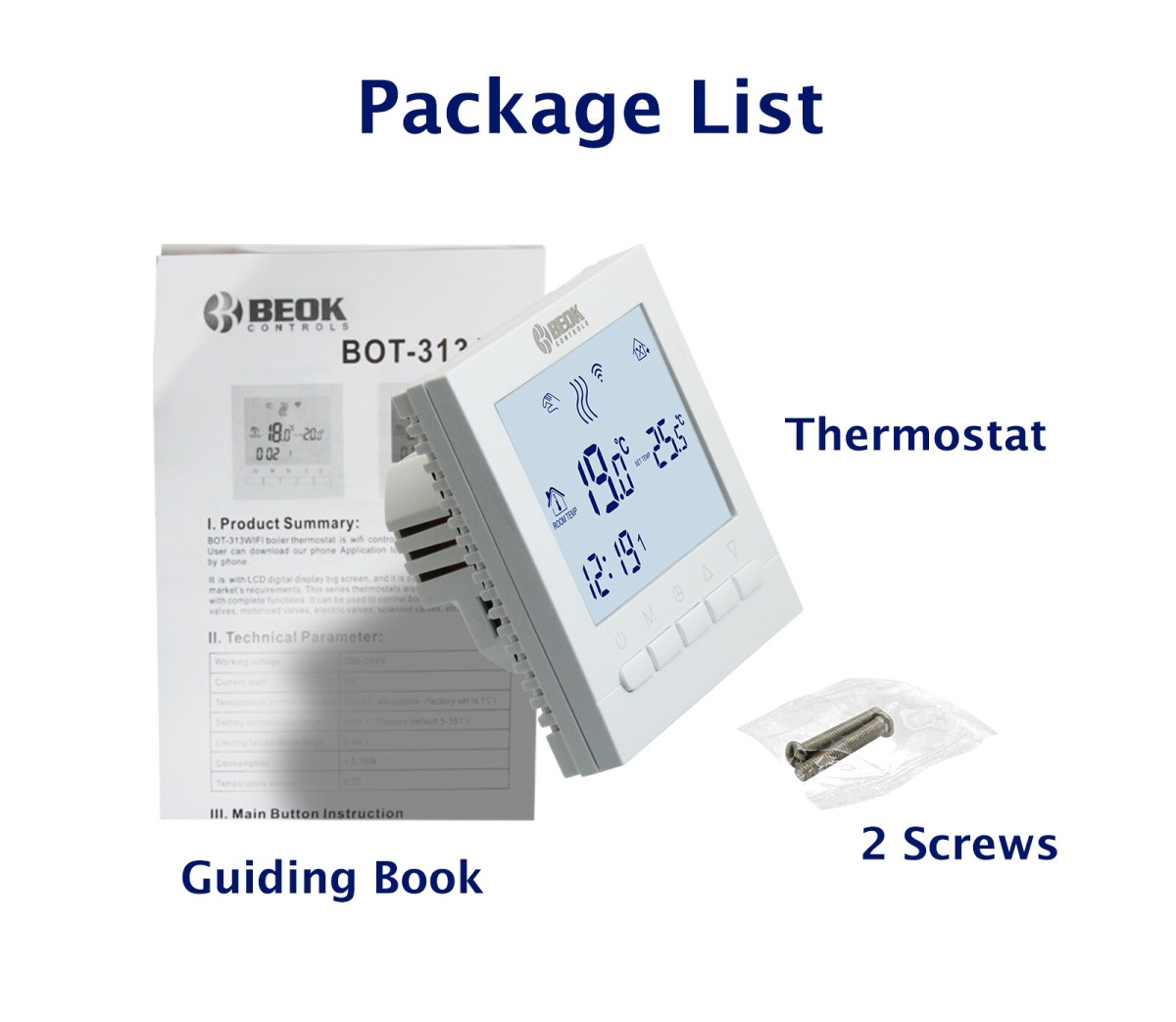

The standard package of the BOT-313W-WIFI thermostat includes the following accessories:


1 Thermostat

1 Guiding Book

2 Screws

FAQS


1. Q: Can I install this thermostat by myself? Do I need to hire an electrician?

   A: Regarding the installation of the thermostat, we first recommend that you operate in strict accordance with the steps in the product manual under the guidance of professionals to ensure standardized installation and stable subsequent operation of the device. If you choose to install it yourself, you must carefully read the manual in advance, fully master the installation process, wiring requirements and safety precautions before starting the operation, so as to avoid affecting the device's function or causing potential safety hazards due to improper operation.


2. Q: If I use both battery power and USB power at the same time, which power supply method takes priority?

    A: If you have installed batteries and connected a USB cable at the same time, this thermostat is set to prioritize the USB power supply mode by default, in order to effectively reduce battery power consumption and extend the battery's service life.


3. Q: Is this thermostat compatible with gas boilers of other brands?

    A: This thermostat is currently compatible with gas boilers of most brands. However, there are numerous brands and models of gas boilers available on the market, and the wiring specifications may vary between different products. To ensure accurate compatibility, we recommend that you first refer to the wiring diagram included with the product for verification. If you encounter any questions during the verification process or need to further confirm compatibility details, you may also contact your purchasing supplier or communicate directly with us through official customer service channels—we will provide you with professional compatibility guidance.


4. Q: How long is the product warranty period?

    A: Our products come with a 2-year free warranty. If there is a quality issue (such as failure to turn on or unresponsive buttons) after you receive the goods, you can contact the after-sales customer service and provide the order number and photos of the problem. We will arrange for a replacement or repair.
