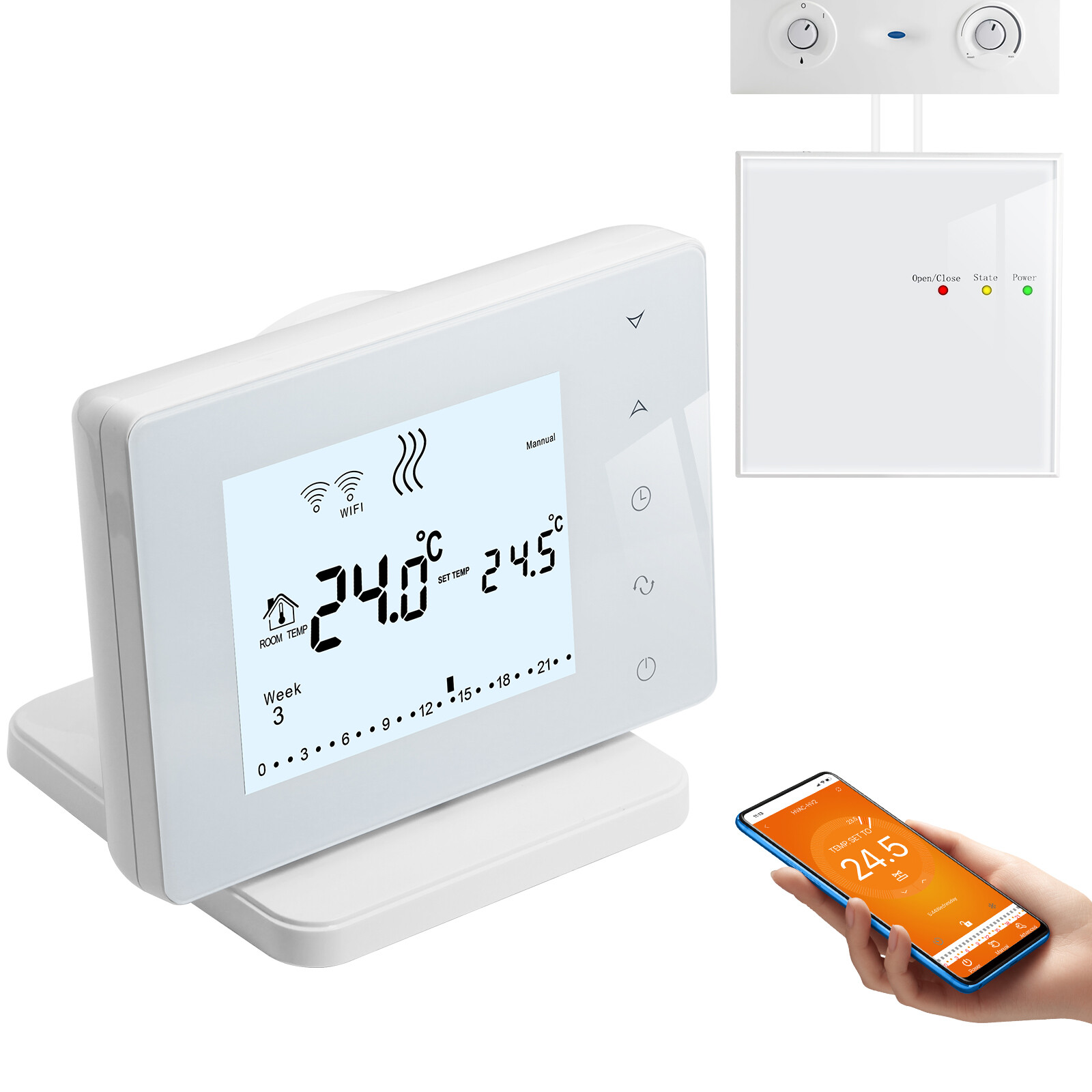

Gas Boiler Thermostat
BOT-306RF-WIFI

About this item

• To Control Gas Boiler

• Supply: USB Type-C 1 Meter

• Load Current: 3A

• Sensor: Only Internal Air Sensor

• Connection: Wireless

• Programmable: Weekly Programmable

• Wi-Fi enabled, supports remote app & voice control

• App Control: Beok Home

• Voice Control: GoogleHome / Amazon Alexa / Yandex Alice

• Mounting Type: Desk Stand

• Color: White

• Dimensions: 90x85x22 mm



Video




Technical Data


Model Name
BOT-306RF-WIFI
PowerUSB Type-C 1 Meter
Temperature Precision±0.5℃
Temperature Range5℃~60 ℃
Temperature Calibration-9.9℃~9.9℃
Temperature Hysteresis0.5℃~10℃
Temperature SensorNTC
Load Current3A (resistant)
Self-consumption Power<170 μW
Programmable functionWeekly Program
Temperature SensorInternal Air Sensor
CertificatesCE / RED/ ROHS
Warranty24 months



Model Spec


BOT-W306BOT-X306BOT-306RF-WIFI
2 x AA Batteries2 x AA BatteriesUSB Type-C 1 Meter
3A3A3A
Gas Boiler HeatingGas Boiler HeatingGas Boiler Heating

× Wireless

 √ Wireless  √ Wireless

× APP Control

× APP Control

  √ APP Control
 √ Air Sensor  √ Air Sensor  √ Air Sensor
× Floor Sensor× Floor Sensor× Floor Sensor
Surface MountingSurface MountingDesk Stand
WhiteWhiteWhite



Product Display


BOT-306RF-WIFI USB Powered Wi-Fi Boiler Thermostat, the frequency is 433MHz, and the rf signal distance is about 30 meters indoors, the wireless transmission distance is about 200 meters outdoors.


BOT-306RF-WIFI thermostat is powered by USB type C cable, the USB cable is included in the package, the length of USB cable is about 1 meter.


BOT306RF-WIFI smart thermostat is desktop version. It can be put on the desk or table in any rooms.


02


APP Control


BOT-306RF-WIFI series Thermostat works with Beok Home app, you can control it via phone anywhere and anytime.


03


Voice Control


BOT-306RF-WIFI series wifi thermostat is compatible with Google Home, Amazon Alexa, Yandex Alice, etc.


11

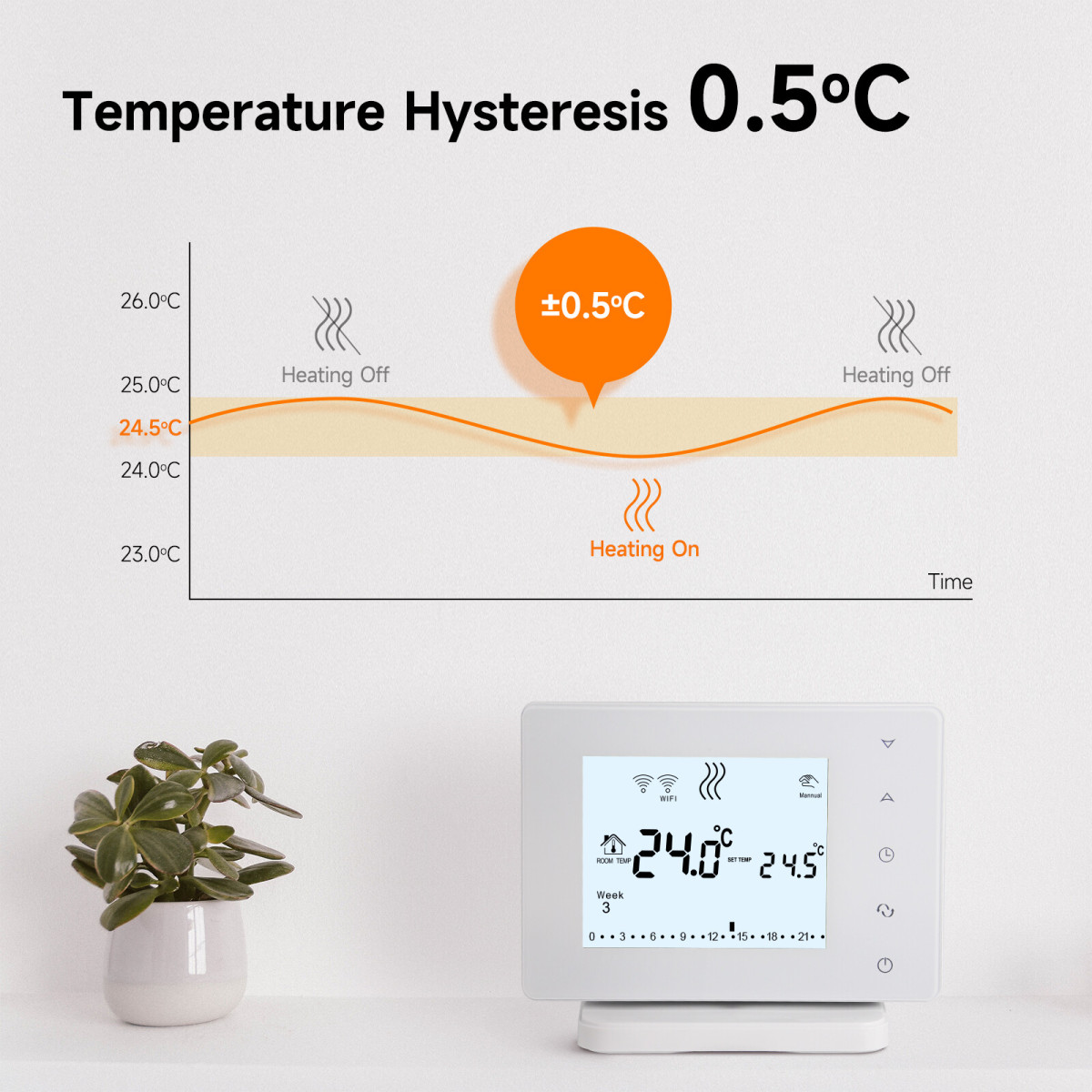

Temperature Hysteresis


This refers to the temperature value of the thermostat turning on and stopping heating. For example, the current setting temperature is 25 ℃, and the starting temperature difference is set to 0.5 ℃. Then, when the room temperature is below 24.5 ℃, the heating is turned on, and the heating is stopped when it reaches 25.5 ℃.
