BOT-W306
About this item
• To Control Gas Boiler
• Supply: 2 x AA Batteries
• Load Current: 3A
• Sensor: Only Internal Air Sensor
• Connection: Wired
• Programmable: Weekly Programmable
• Mounting Type: Surface Mounting
• Color: White
• Dimensions: 90x85x22 mm
Video
Technical Data
Model Spec
Product Display

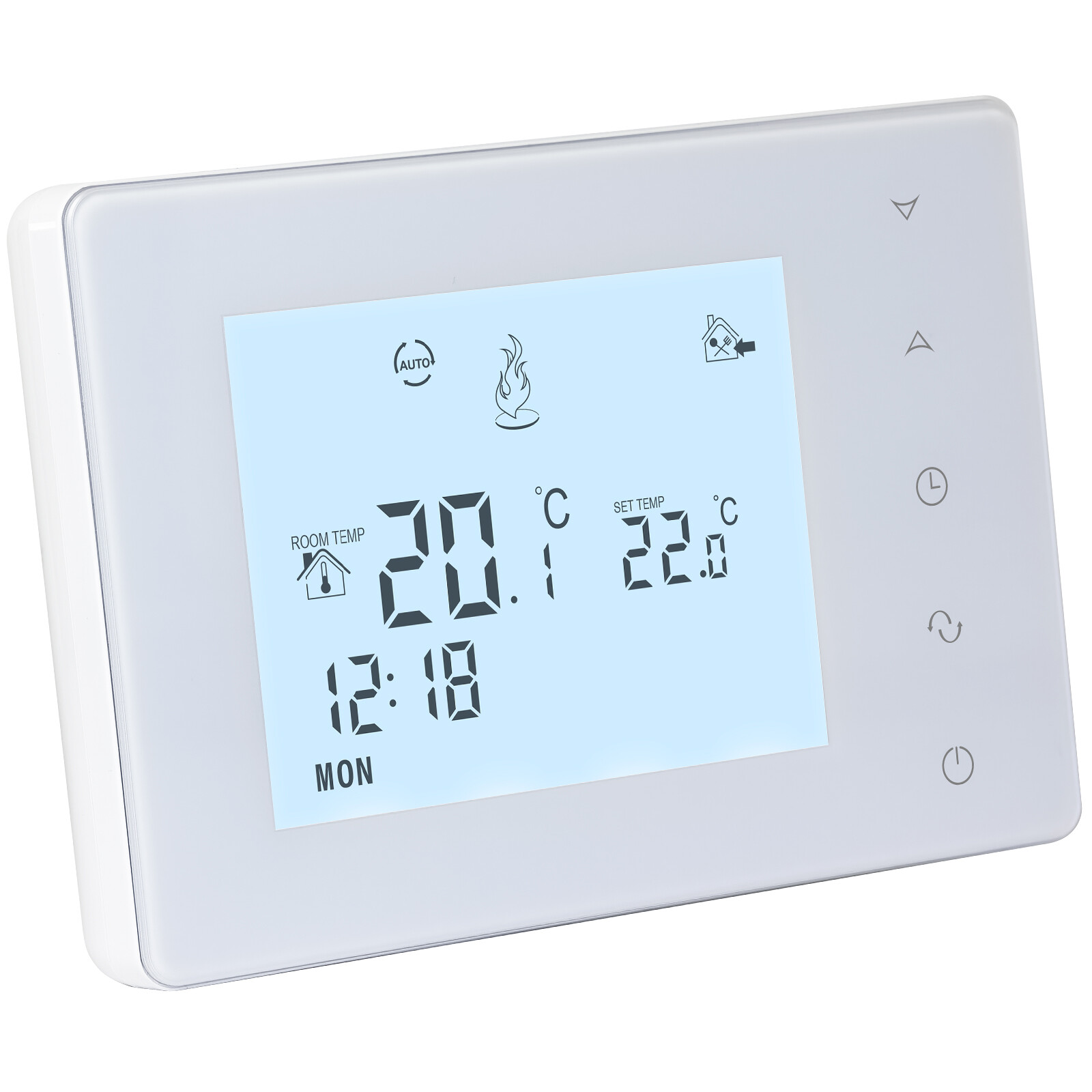

BOT-W306 series thermostats are used to control 3A Gas Boiler Heating Elements.
Underlfloor heating is to use electricity or water to achieve room underfloor central heating, is a kind heating way of transferring energy into heat energy to directly release heat to meet the central heating demand. Thermostat is the switch to realize intelligent temperature control. It can freely adjust the indoor temperature, and can be set on or off according to user requirements for a variety of time and a variety of preset mode of automatic operation to adjust the room temperature, so that it reaches a comfortable temperature.

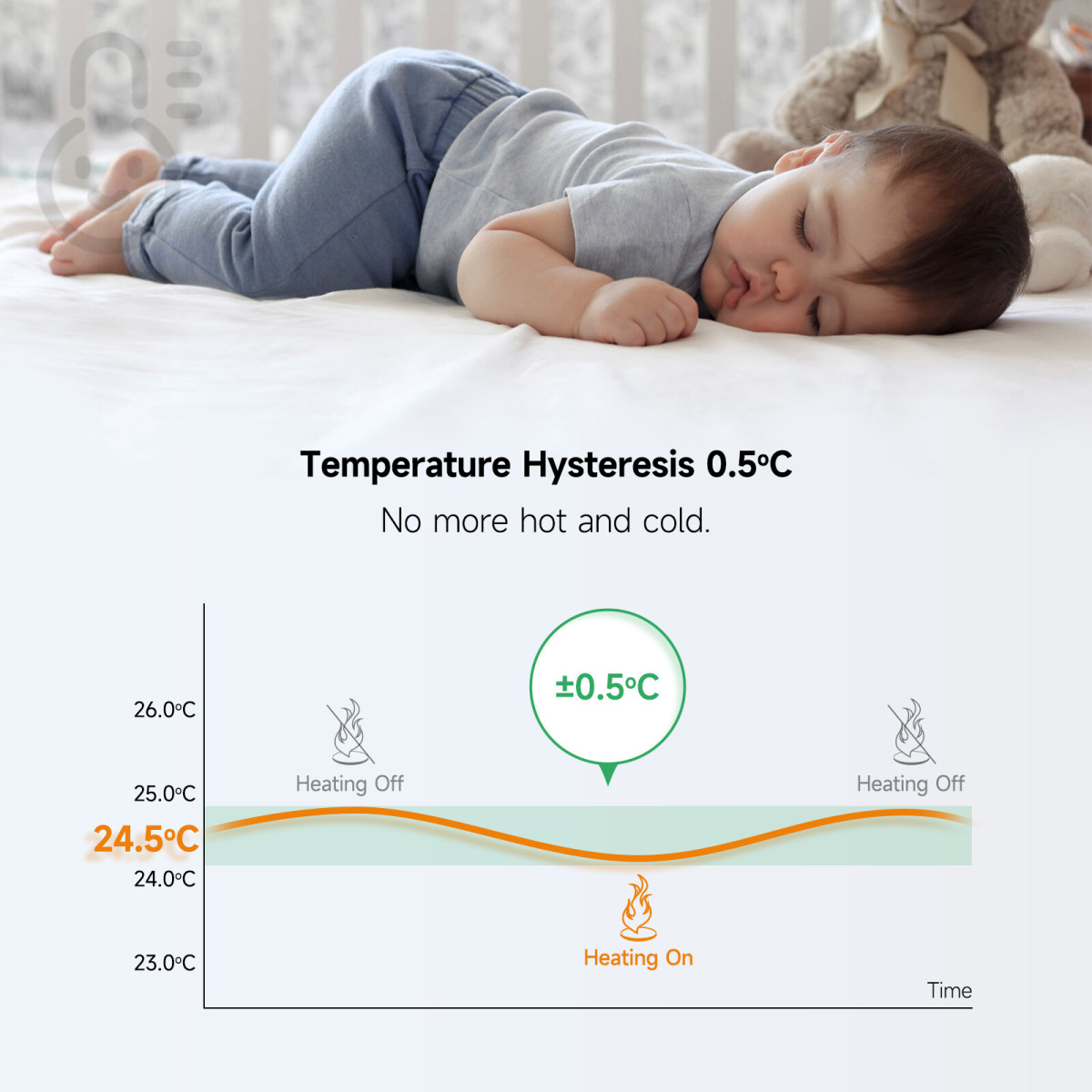

Temperature Hysteresis
This refers to the temperature value of the thermostat turning on and stopping heating. For example, the current setting temperature is 25 ℃, and the starting temperature difference is set to 0.5 ℃. Then, when the room temperature is below 24.5 ℃, the heating is turned on, and the heating is stopped when it reaches 25.5 ℃.
Battery Low Alert
When the low battery indicator is displayed,battery replacement is required.
Weekly Programmable
The weekly programmable function can set the temperature at differents times.
